Taoglas

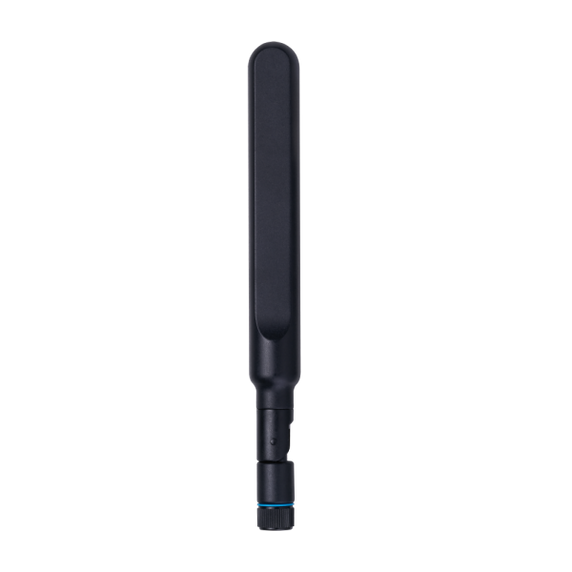

Taoglas Triton TG.10 5G/4G Terminal Antenna
Product Code:
TG.10.0113
Condition:
New
Weight:
0.10 KGS
Width:
1.80
(cm)
Height:
16.80
(cm)
Depth:
1.80
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The TG.10 Triton is a dipole 5G/4G antenna designed for use with the next generation of router and gateway applications. Covering the full 600-6000MHz cellular frequency spectrum, the TG.10 Triton is ideal for applications where a wideband dipole antenna may be required. The TG.10 Triton can also be used for NB-IoT, Cat-M, assisted GNSS and dual-band Wi-Fi® and due to its full spectrum coverage is backwards compatible with legacy technologies such as 3G and GSM.
The TG.10 Triton has a sleek yet robust PC+ABS enclosure, which makes it ideal for mounting onto routers which are often using this PC+ABS material.
Typical applications include:
– Gateways and Routers
– In-Building Connectivity Systems
– Point of Sales Kiosks
– Connected Industries
– Smart Metering
The TG.10 Triton is supplied with a hinged SMA connector for ease of mounting in MIMO systems. The dimensions of the TG.10 are 168*18*13mm meaning it can be covertly installed on routers and other similar devices unlike some of the bulkier products on the market.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Cellular |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 18 |
| Width (mm) | 18 |
| Height (mm) | 168 |
| Connector Body Style | Hinged |
| Polarity | Linear |
| Frequency Range | 600MHz - 6000MHz |
| Connector Polarity | Normal |
| VSWR | <3.5 |
| Weight (g) | 24 |
| RoHS | Yes |
| Gain (Max) | 2.51 |
5 customers are viewing this product
Details
The TG.10 Triton is a dipole 5G/4G antenna designed for use with the next generation of router and gateway applications. Covering the full 600-6000MHz cellular frequency spectrum, the TG.10 Triton is ideal for applications where a wideband dipole antenna may be required. The TG.10 Triton can also be used for NB-IoT, Cat-M, assisted GNSS and dual-band Wi-Fi® and due to its full spectrum coverage is backwards compatible with legacy technologies such as 3G and GSM.
The TG.10 Triton has a sleek yet robust PC+ABS enclosure, which makes it ideal for mounting onto routers which are often using this PC+ABS material.
Typical applications include:
– Gateways and Routers
– In-Building Connectivity Systems
– Point of Sales Kiosks
– Connected Industries
– Smart Metering
The TG.10 Triton is supplied with a hinged SMA connector for ease of mounting in MIMO systems. The dimensions of the TG.10 are 168*18*13mm meaning it can be covertly installed on routers and other similar devices unlike some of the bulkier products on the market.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Cellular |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 18 |
| Width (mm) | 18 |
| Height (mm) | 168 |
| Connector Body Style | Hinged |
| Polarity | Linear |
| Frequency Range | 600MHz - 6000MHz |
| Connector Polarity | Normal |
| VSWR | <3.5 |
| Weight (g) | 24 |
| RoHS | Yes |
| Gain (Max) | 2.51 |
