Taoglas

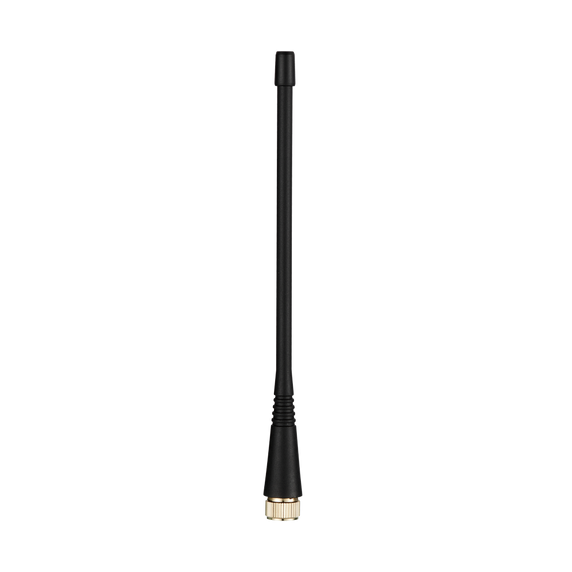

Taoglas TI.43.A111 400-470MHz Terminal Mount Antenna with SMA(M) Connector
Product Code:
TI.43.A111
Condition:
New
Weight:
0.10 KGS
Width:
1.50
(cm)
Height:
18.10
(cm)
Depth:
1.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The TI.43 Series is a range of high-performance terminal mount antennas optimized for operation at 433MHz, a widely adopted license-free ISM band for long-range, low-data-rate communications. Designed for ease of integration, it mounts directly to devices via a selection of SMA, TNC, N-Type, or BNC male connectors, offering flexibility for a range of RF interfaces.
With an omni-directional radiation pattern in the azimuth plane, the TI.43.A311 ensures consistent performance in all horizontal directions—ideal for devices that require reliable, uniform coverage in diverse deployment environments.
Typical applications include:
-
Smart Metering Systems
-
Wireless Mesh Networks
-
Security and Defense Equipment
-
Industrial Remote Control Devices
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, ISM/LoRA |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 14.5 |
| Width (mm) | 14.5 |
| Height (mm) | 180.4 |
| Polarity | Linear |
| Frequency Range | 440MHz - 510MHz |
| Connector Polarity | None |
| VSWR | <2 |
| Weight (g) | 25 |
| RoHS | Yes |
| Gain (Max) | 3.4 |
