Taoglas

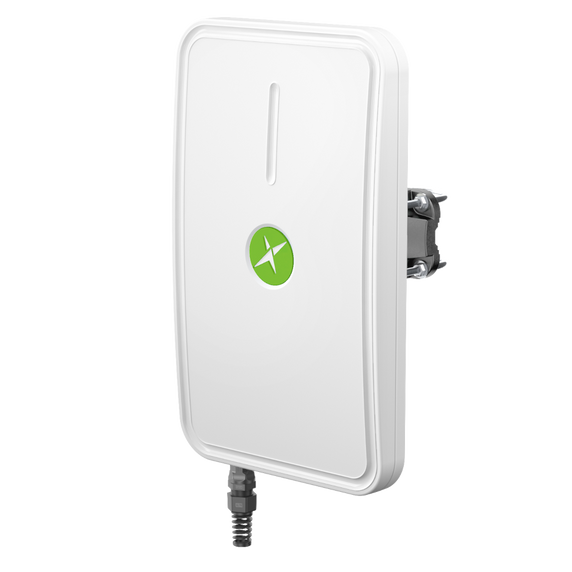

Taoglas Thunder Integrated Directional 868 MHz Antenna for LoRa Devices
Product Code:
THDRLR8
Condition:
New
Weight:
2.00 KGS
Width:
48.00
(cm)
Height:
7.60
(cm)
Depth:
29.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The THDRLR8 operates at 868 MHz (EU868, IN865, RU864) with 12.5dBi gain. Experience unparalleled reach with this high-gain directional antenna. Its advanced design enables your LoRa devices to communicate effectively over long distances, even in challenging outdoor environments. Comparing to omnidirectional antenna, sector antenna transmits signal to a farther distance because of the antenna’s directional gain. Advanced mounting system gives significant advantage that it can be adjusted in the range of +/-35 degrees in two planes, also in case of wall mounting.
Typical applications include:
– Smart Cities
– Smart Public Transit
– Infrastructure Management
– Enterprise & IoT Deployments
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, ISM/LoRA |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 75 |
| Mounting Style | Wall/Pole |
| Termination Style | Connector |
| Antenna Connector Type | RJ45 |
| Length (mm) | 290 |
| Width (mm) | 480 |
| Height (mm) | 76 |
| Cable Type | n/a |
| Connector Body Style | Straight |
| Polarity | RHCP, Vertical |
| Frequency Range | 868 MHz |
| Connector Polarity | Normal |
| VSWR | <2 |
| Weight (g) | 2000 |
| RoHS | Yes |
| Gain (Max) | 12.5 |
5 customers are viewing this product
Details
The THDRLR8 operates at 868 MHz (EU868, IN865, RU864) with 12.5dBi gain. Experience unparalleled reach with this high-gain directional antenna. Its advanced design enables your LoRa devices to communicate effectively over long distances, even in challenging outdoor environments. Comparing to omnidirectional antenna, sector antenna transmits signal to a farther distance because of the antenna’s directional gain. Advanced mounting system gives significant advantage that it can be adjusted in the range of +/-35 degrees in two planes, also in case of wall mounting.
Typical applications include:
– Smart Cities
– Smart Public Transit
– Infrastructure Management
– Enterprise & IoT Deployments
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, ISM/LoRA |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 75 |
| Mounting Style | Wall/Pole |
| Termination Style | Connector |
| Antenna Connector Type | RJ45 |
| Length (mm) | 290 |
| Width (mm) | 480 |
| Height (mm) | 76 |
| Cable Type | n/a |
| Connector Body Style | Straight |
| Polarity | RHCP, Vertical |
| Frequency Range | 868 MHz |
| Connector Polarity | Normal |
| VSWR | <2 |
| Weight (g) | 2000 |
| RoHS | Yes |
| Gain (Max) | 12.5 |
