Taoglas
Taoglas Thunder Integrated 5G/LTE Omnidirectional Antenna for Ericsson S700 including PoE Passive
Product Code:
THOR70PP
Condition:
New
Weight:
1.80 KGS
Width:
27.00
(cm)
Height:
9.60
(cm)
Depth:
27.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

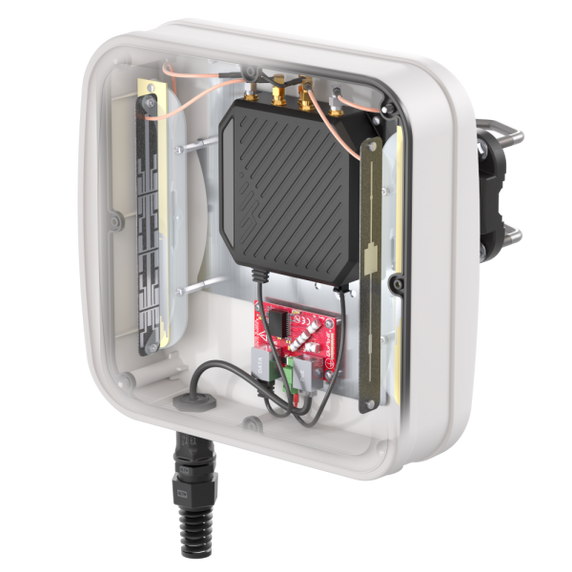

The Taoglas THOR70 all-in-one antenna for Ericsson (Cradlepoint) S700 routers is a perfect outdoor device for mobile and fixed installations like industrial, public, CCTV, hotspots, yachts, boats, campers, and RVs. It has embedded 5G, Wi-Fi®, and GNSS antennas. If you use the Ericsson (Cradlepoint) S700 with THOR70 Thunder Omnidirectional antenna, you get an integrated complete solution with embedded router and multi-band antennas in one enclosure.
Typical applications include:
– Critical Communications and Public Safety
– Transportation & Fleet Management
– Industrial and Rugged Environments
– Enterprise & IoT Deployments
The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-7125 MHz, the THOR70 is a fantastic solution for 5G, Wi-Fi®, and GNSS applications.
The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 75 |
| Mounting Style | Wall/Pole |
| Termination Style | Connector |
| Antenna Connector Type | RJ45 |
| Length (mm) | 270 |
| Width (mm) | 270 |
| Height (mm) | 96 |
| Cable Type | n/a |
| Connector Body Style | Straight |
| Polarity | RHCP, Vertical |
| Frequency Range | 600MHz - 7125MHz |
| Connector Polarity | Normal |
| VSWR | <2 |
| Weight (g) | 1800 |
| RoHS | Yes |
| Gain (Max) | 7.5 |
5 customers are viewing this product
Details
The Taoglas THOR70 all-in-one antenna for Ericsson (Cradlepoint) S700 routers is a perfect outdoor device for mobile and fixed installations like industrial, public, CCTV, hotspots, yachts, boats, campers, and RVs. It has embedded 5G, Wi-Fi®, and GNSS antennas. If you use the Ericsson (Cradlepoint) S700 with THOR70 Thunder Omnidirectional antenna, you get an integrated complete solution with embedded router and multi-band antennas in one enclosure.
Typical applications include:
– Critical Communications and Public Safety
– Transportation & Fleet Management
– Industrial and Rugged Environments
– Enterprise & IoT Deployments
The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-7125 MHz, the THOR70 is a fantastic solution for 5G, Wi-Fi®, and GNSS applications.
The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 75 |
| Mounting Style | Wall/Pole |
| Termination Style | Connector |
| Antenna Connector Type | RJ45 |
| Length (mm) | 270 |
| Width (mm) | 270 |
| Height (mm) | 96 |
| Cable Type | n/a |
| Connector Body Style | Straight |
| Polarity | RHCP, Vertical |
| Frequency Range | 600MHz - 7125MHz |
| Connector Polarity | Normal |
| VSWR | <2 |
| Weight (g) | 1800 |
| RoHS | Yes |
| Gain (Max) | 7.5 |
