Taoglas

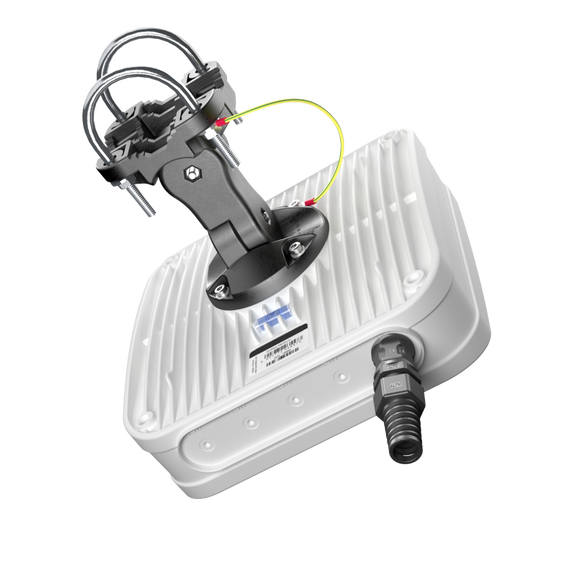

Taoglas Thunder Integrated 5G/LTE Omnidirectional Antenna for DIGI EX50
Product Code:
THOR50
Condition:
New
Weight:
0.10 KGS
Width:
2.70
(cm)
Height:
2.80
(cm)
Depth:
1.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Taoglas THOR50 is an omnidirectional all-in-one antenna for DIGI EX50 routers is a perfect outdoor device for mobile and fixed installations like industrial, public, CCTV, hot-spots, yachts, boats, campers, and RVs. It has embedded omni 5G antennas. If you use a DIGI EX50 router with a THOR50 Thunder omnidirectional antenna, you get a complete integrated solution with embedded router and multi-band antennas in one enclosure.
Typical applications include:
– Remote and Hybrid Work Environments
– Branch and Retail Locations
– Industrial and Rugged Environments
– High-Bandwidth Applications
– Critical Communications and Public Safety
The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-6000 MHz, the THOR50 is a fantastic solution for wideband cellular applications.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 75 |
| Mounting Style | Wall/Pole |
| Termination Style | Connector |
| Antenna Connector Type | RJ45 |
| Length (mm) | 272 |
| Width (mm) | 276 |
| Height (mm) | 96 |
| Cable Type | n/a |
| Connector Body Style | Straight |
| Polarity | RHCP, Vertical |
| Frequency Range | 600MHz - 6000MHz |
| Connector Polarity | Normal |
| VSWR | <2 |
| Weight (g) | 1800 |
| RoHS | Yes |
| Gain (Max) | 4.5 |
5 customers are viewing this product
Details
The Taoglas THOR50 is an omnidirectional all-in-one antenna for DIGI EX50 routers is a perfect outdoor device for mobile and fixed installations like industrial, public, CCTV, hot-spots, yachts, boats, campers, and RVs. It has embedded omni 5G antennas. If you use a DIGI EX50 router with a THOR50 Thunder omnidirectional antenna, you get a complete integrated solution with embedded router and multi-band antennas in one enclosure.
Typical applications include:
– Remote and Hybrid Work Environments
– Branch and Retail Locations
– Industrial and Rugged Environments
– High-Bandwidth Applications
– Critical Communications and Public Safety
The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-6000 MHz, the THOR50 is a fantastic solution for wideband cellular applications.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 75 |
| Mounting Style | Wall/Pole |
| Termination Style | Connector |
| Antenna Connector Type | RJ45 |
| Length (mm) | 272 |
| Width (mm) | 276 |
| Height (mm) | 96 |
| Cable Type | n/a |
| Connector Body Style | Straight |
| Polarity | RHCP, Vertical |
| Frequency Range | 600MHz - 6000MHz |
| Connector Polarity | Normal |
| VSWR | <2 |
| Weight (g) | 1800 |
| RoHS | Yes |
| Gain (Max) | 4.5 |
