Taoglas

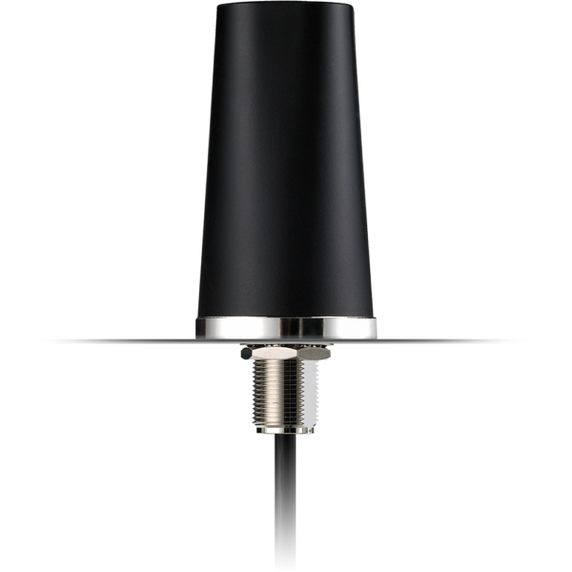

Taoglas Shockwave TLS.01 5G/4G Permanent Mount Antenna, 3m CFD200/TGC200 SMA(M)
Product Code:
TLS.01.305111
Condition:
New
Weight:
0.27 KGS
Width:
4.20
(cm)
Height:
7.95
(cm)
Depth:
4.11
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Shockwave TLS.01.305111 is a wideband permanent mount antenna. It is a waterproof IP67, external 5G/4G cellular and GPS antenna operating at 600-6000MHz. It has been designed to be used on a ground plane. It can be used in mobile and fixed applications for 5G/4G wireless such as:
- Public safety
- HD video streaming
- Utilities and smart cities
- Fleet management
- Precision agricultural
- Industrial applications
This antenna has superior performance over wide bands compared to traditional whip antennas. Up to 77% efficiency and with a minimum 2.2dBi peak gain over all cellular bands result when mounted on a 30 x 30cm ground plane. Stable radiation patterns over low angles provide consistent gain in the horizontal plane, meaning that it is especially suitable for cellular applications.
A unique indent tab on the base of the antenna allows a wrench to be used to solidly lock the antenna on top of its mounting location while tightening up the nut beneath the metal panel. Waterproof o-rings around the bottom base prevent water from leaking under the antenna.
The TLS.01 antenna is IP67 waterproof resistant against high-pressure water jets in commercial cleaning environments, which makes the antenna ideal for 2G/3G/4G applications either in indoor or in harsh outdoor environments.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Cellular |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Direct |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 41.06 |
| Width (mm) | 42 |
| Height (mm) | 79.45 |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | Vertical |
| Frequency Range | 600MHz - 6000MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | 02:01 |
| Weight (g) | 270 |
| RoHS | Yes |
| Gain (Max) | -1.14 |
