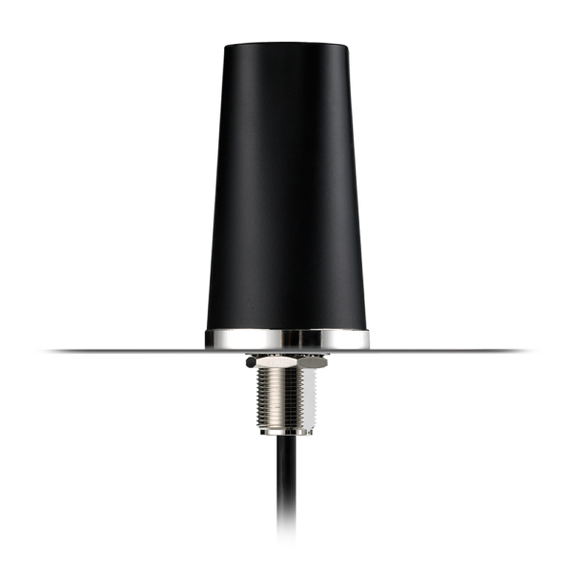

Taoglas Shockwave 868/915MHz Robust Permanent Mount External Antenna
Product Code:
TLS.90.205111
Condition:
New
Weight:
0.25 KGS
Width:
4.20
(cm)
Height:
7.95
(cm)
Depth:
4.11
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Shockwave TLS.90.205111 is a mechanically robust, waterproof, external antenna operating at 868MHz and 915MHz with 2 meter of low loss TGC-200 and SMA(M) connector. It has been designed to be used on a Ground Plane.
Typical applications include:
- Public safety
- Smart meters
- Mesh networks
- Transportation
The antenna has greater than 60% efficiency and 1.58dBi peak gain at 868MHz 64% efficiency and 1.9dBi peak gain at ISM 915MHz on a 30×30 cm ground plane. Stable radiation patterns over low angles provide a consistent gain in the horizontal plane, meaning that it is especially suitable for mesh networks or hot spots.
A unique indent tab on the base of the antenna allows a wrench to be used to solidly lock the antenna on top of its mounting location while tightening up the nut beneath the metal panel. Waterproof O-rings around the bottom base prevent water from leaking under the antenna. The TLS.90 antenna is IP67 waterproof resistant against high-pressure water jets in commercial cleaning environments, which makes the antenna ideal for 868 & 915MHz applications in harsh outdoor environments.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, ISM/LoRA |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Direct |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 41.06 |
| Width (mm) | 42 |
| Height (mm) | 79.45 |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 860MHz - 928MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 2000 |
| VSWR | <2 |
| Weight (g) | 245 |
| RoHS | Yes |
| Gain (Max) | 1.58 |
