Taoglas

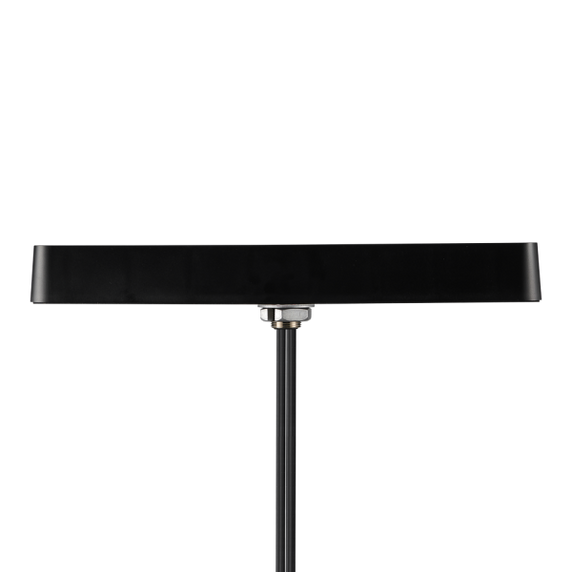

Taoglas Raptor X 4-in-1 Permanent Mount Combination Antenna with 4x 4G/5G MIMO
Product Code:
MA890.A.BIVW.001
Condition:
New
Weight:
0.46 KGS
Width:
7.00
(cm)
Height:
4.00
(cm)
Depth:
35.00
(cm)
$207.49
The Taoglas MA890 is a permanent mount antenna designed to cover 5G and 4G cellular bands between 617MHz up to 6GHz. The MA890 is a 4-in-1 antenna with 4 5G MIMO Antennas in one compact enclosure, which has been designed with the future of 5G cellular connectivity in mind. With 5G becoming more prevalent in use it is important to have an antenna that can cover multiple different frequency bands for various uplink and downlink requirements, increasing throughput for a device.
Typical applications include:
– Digital Signage
– Transportation and Autonomous Vehicles
– Private 5G Networks
– Public Safety and First Responders
The MA890 has a robust IK10 rated enclosure for applications which may require installation in harsh environments. It is also IP69K waterproof rated so it is ideal for mounting in areas not protected from rainfall such as on the roof of a bus stop or a digital display.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 350 |
| Width (mm) | 70 |
| Height (mm) | 40 |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 600MHz - 6000MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 2000 |
| VSWR | <2 |
| Weight (g) | 455 |
| RoHS | Yes |
| Gain (Max) | 4.6 |
5 customers are viewing this product
Details
The Taoglas MA890 is a permanent mount antenna designed to cover 5G and 4G cellular bands between 617MHz up to 6GHz. The MA890 is a 4-in-1 antenna with 4 5G MIMO Antennas in one compact enclosure, which has been designed with the future of 5G cellular connectivity in mind. With 5G becoming more prevalent in use it is important to have an antenna that can cover multiple different frequency bands for various uplink and downlink requirements, increasing throughput for a device.
Typical applications include:
– Digital Signage
– Transportation and Autonomous Vehicles
– Private 5G Networks
– Public Safety and First Responders
The MA890 has a robust IK10 rated enclosure for applications which may require installation in harsh environments. It is also IP69K waterproof rated so it is ideal for mounting in areas not protected from rainfall such as on the roof of a bus stop or a digital display.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 350 |
| Width (mm) | 70 |
| Height (mm) | 40 |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 600MHz - 6000MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 2000 |
| VSWR | <2 |
| Weight (g) | 455 |
| RoHS | Yes |
| Gain (Max) | 4.6 |
