Taoglas

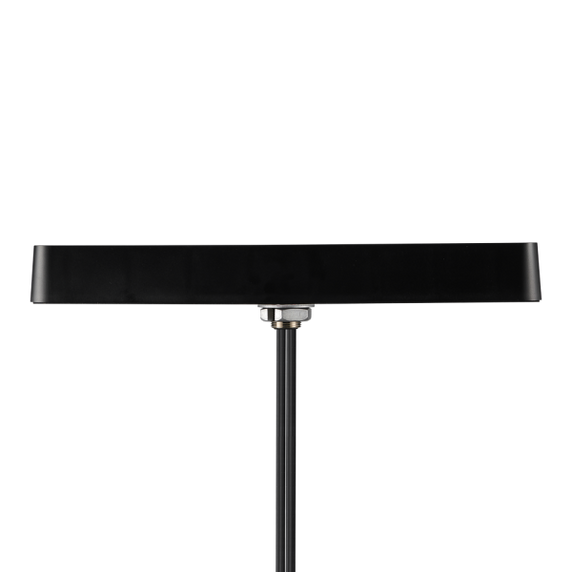

Taoglas Raptor X 10-in-1 Permanent Mount Combination Antenna with GNSS L1/L5, 4x 5G/4G MIMO and 5x Wi-Fi MIMO
Product Code:
MA8010.A.001
Condition:
New
Weight:
1.10 KGS
Width:
7.00
(cm)
Height:
4.00
(cm)
Depth:
35.00
(cm)
$532.33
The MA8010 is a 10-in-1 combination antenna that has been designed to be used in conjunction with the next generation of routers and gateways. The MA8010 has dual-band GNSS L1/L5 for precision navigational accuracy, high efficiency 5G/4G wideband cellular from 600-6000MHz for enhanced connectivity, and Tri-Band Wi-Fi® for future-proof applications at 2.4/5.8GHz.
The MA8010 has an extremely small form factor of just 350 x 70 x 39mm, much smaller than the market standard size for a product containing up to 10 connections. At just 39mm in height, the MA8010 is perfect for mounting on roofs of vehicles where max height is often 80mm, and it’s thin size of 70mm in width means it can be used on various NEMA cabinets.
Typical applications include:
– Emergency and First Responder Vehicles
– EV Chargers
– Smart Industry
– Warehouses
– Private LTE Network
The MA8010 is IP69K rated and it’s 10 connections can be customized to any requirements below 10-in-1 for specific router and customer configurations to include GNSS up to 4 cellular connections and 5 W-Fi connections. The cables and connectors are fully customizable.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination |
| IP Rating | IP69K |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | FAKRA |
| Length (mm) | 350 |
| Width (mm) | 70 |
| Height (mm) | 40 |
| Cable Type | TGC-1.5DS |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 600MHz - 6000MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | <2 |
| Weight (g) | 1050 |
| RoHS | Yes |
| Gain (Max) | 3.93 |
5 customers are viewing this product
Details
The MA8010 is a 10-in-1 combination antenna that has been designed to be used in conjunction with the next generation of routers and gateways. The MA8010 has dual-band GNSS L1/L5 for precision navigational accuracy, high efficiency 5G/4G wideband cellular from 600-6000MHz for enhanced connectivity, and Tri-Band Wi-Fi® for future-proof applications at 2.4/5.8GHz.
The MA8010 has an extremely small form factor of just 350 x 70 x 39mm, much smaller than the market standard size for a product containing up to 10 connections. At just 39mm in height, the MA8010 is perfect for mounting on roofs of vehicles where max height is often 80mm, and it’s thin size of 70mm in width means it can be used on various NEMA cabinets.
Typical applications include:
– Emergency and First Responder Vehicles
– EV Chargers
– Smart Industry
– Warehouses
– Private LTE Network
The MA8010 is IP69K rated and it’s 10 connections can be customized to any requirements below 10-in-1 for specific router and customer configurations to include GNSS up to 4 cellular connections and 5 W-Fi connections. The cables and connectors are fully customizable.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination |
| IP Rating | IP69K |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | FAKRA |
| Length (mm) | 350 |
| Width (mm) | 70 |
| Height (mm) | 40 |
| Cable Type | TGC-1.5DS |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 600MHz - 6000MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | <2 |
| Weight (g) | 1050 |
| RoHS | Yes |
| Gain (Max) | 3.93 |
