Taoglas

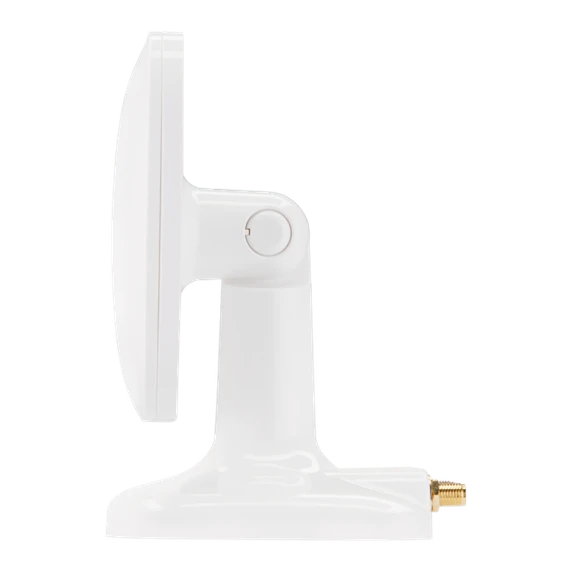

Taoglas Pivot 2.4/5.8GHz x3 MIMO Wi-Fi MIMO Desk/Magnet Mount External Antenna
Product Code:
WMA.328.A.001
Condition:
New
Weight:
0.16 KGS
Width:
9.50
(cm)
Height:
12.40
(cm)
Depth:
9.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The WMA.328.A.001 is an attractive desk/magnet/Wi-Fi® 3 in 1 MIMO wall mount antenna. This sleekly designed antenna is a compact MIMO dual-band Wi-Fi® patch array antenna incorporating three separately fed antennas in a single housing.
It is an ideal solution to address a slow or dropping out Wi-Fi® signal in places where signal quality is reduced such as building interiors. This is because RHCP circular polarization in this antenna helps preserve received signal quality in rich isotropic multipath (RIMP) environments where reflected signals can be a significant source of interference.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Wi-Fi®/Bluetooth® |
| Wi-Fi Bands | 2.4/5.8GHz |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Wall |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 95 |
| Width (mm) | 95 |
| Height (mm) | 124 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 2.4/5.8GHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 1000 |
| VSWR | 02:01 |
| Weight (g) | 152 |
| RoHS | Yes |
| Gain (Max) | 3.2 |
5 customers are viewing this product
Details
The WMA.328.A.001 is an attractive desk/magnet/Wi-Fi® 3 in 1 MIMO wall mount antenna. This sleekly designed antenna is a compact MIMO dual-band Wi-Fi® patch array antenna incorporating three separately fed antennas in a single housing.
It is an ideal solution to address a slow or dropping out Wi-Fi® signal in places where signal quality is reduced such as building interiors. This is because RHCP circular polarization in this antenna helps preserve received signal quality in rich isotropic multipath (RIMP) environments where reflected signals can be a significant source of interference.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Wi-Fi®/Bluetooth® |
| Wi-Fi Bands | 2.4/5.8GHz |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Wall |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 95 |
| Width (mm) | 95 |
| Height (mm) | 124 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 2.4/5.8GHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 1000 |
| VSWR | 02:01 |
| Weight (g) | 152 |
| RoHS | Yes |
| Gain (Max) | 3.2 |
