Taoglas

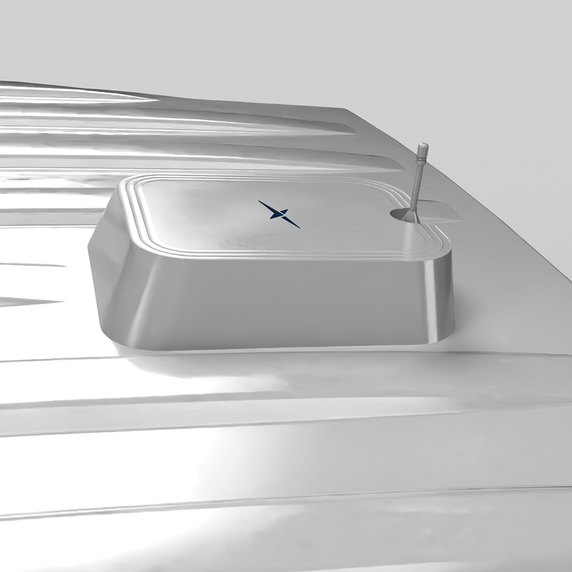

Taoglas Patriot Series White 18-in-1 High-Performance Super Compact Combination Antenna With Interchangeable Whip
Product Code:
PATR.SP.18.W.0.3M
Condition:
New
Weight:
0.84 KGS
Width:
18.00
(cm)
Height:
6.00
(cm)
Depth:
20.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The patent pending Patriot is a cutting-edge, multi-combination antenna engineered specifically for the Ford Interceptor vehicle, the most widely used police vehicle in the U.S. Designed to eliminate the need for multiple antennas, it offers up to 18-in-1 connectivity, including 5G,/4G, GNSS (L1 & L1/L5), Wi-Fi®, SDRAS and LMR/TETRA, ensuring optimal performance for first responders and fleet vehicles. It is a compact, low-profile design that allows for seamless integration onto vehicle roofs, utilizing existing OEM mounting connections to simplify installation.
The Patriot guarantees enhanced signal strength and with its rugged IK08, IP69K-rated enclosure and ability to mount behind the roof ribs, this next-generation antenna delivers superior durability, reliability, and efficiency, making it one of the most versatile and compact solutions available today. With a small footprint of (L)205mm x (W)180mm and a whip height of up to 164mm*, the Compact Design of the Patriot ensures a low-profile, unobtrusive installation.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination |
| IP Rating | IP69K |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw Mount |
| Termination Style | Connector |
| Antenna Connector Type | SMA/RP-SMA |
| Length (mm) | 205 |
| Width (mm) | 180 |
| Height (mm) | 60 |
| Cable Type | RG-174/TGC-1.5D |
| Connector Body Style | Straight |
| Polarity | RHCP, Linear |
| Frequency Range | 600MHz - 8000MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 300 |
| VSWR | 02:01 |
| Weight (g) | 840 |
| RoHS | Yes |
| Gain (Max) | 29.65 |
5 customers are viewing this product
Details
The patent pending Patriot is a cutting-edge, multi-combination antenna engineered specifically for the Ford Interceptor vehicle, the most widely used police vehicle in the U.S. Designed to eliminate the need for multiple antennas, it offers up to 18-in-1 connectivity, including 5G,/4G, GNSS (L1 & L1/L5), Wi-Fi®, SDRAS and LMR/TETRA, ensuring optimal performance for first responders and fleet vehicles. It is a compact, low-profile design that allows for seamless integration onto vehicle roofs, utilizing existing OEM mounting connections to simplify installation.
The Patriot guarantees enhanced signal strength and with its rugged IK08, IP69K-rated enclosure and ability to mount behind the roof ribs, this next-generation antenna delivers superior durability, reliability, and efficiency, making it one of the most versatile and compact solutions available today. With a small footprint of (L)205mm x (W)180mm and a whip height of up to 164mm*, the Compact Design of the Patriot ensures a low-profile, unobtrusive installation.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination |
| IP Rating | IP69K |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw Mount |
| Termination Style | Connector |
| Antenna Connector Type | SMA/RP-SMA |
| Length (mm) | 205 |
| Width (mm) | 180 |
| Height (mm) | 60 |
| Cable Type | RG-174/TGC-1.5D |
| Connector Body Style | Straight |
| Polarity | RHCP, Linear |
| Frequency Range | 600MHz - 8000MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 300 |
| VSWR | 02:01 |
| Weight (g) | 840 |
| RoHS | Yes |
| Gain (Max) | 29.65 |
