Taoglas Olympian II – G45 5G/4G Cellular, Small Form Factor Permanent Mount Antenna
Product Code:
G45.A.201111
Condition:
New
Weight:
0.10 KGS
Width:
5.00
(cm)
Height:
4.80
(cm)
Depth:
5.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

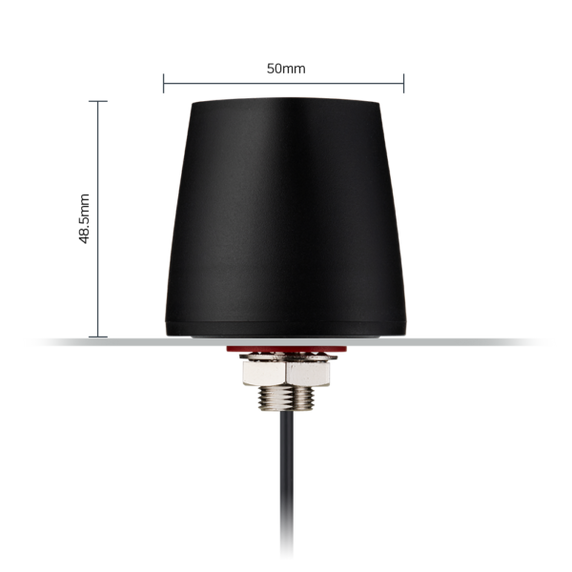

The Taoglas Olympian II G45 is a low profile, robust external 5G/4G wideband 600-6000MHz Antenna. The permanent mount antenna has a small form factor at only 48.5mm tall and 50mm in diameter. It is ideal for external use, due to its IP67 rated housing and IK10, on vehicles and outdoor assets requiring cellular connectivity. The wideband (600-6000MHz) 5G/4G antenna, covers all major worldwide cellular bands including Sub 6GHz, 5G FR1 bands, worldwide 4G bands and includes fallback to 3G/2G where necessary.
Typical Applications Include:
– Digital Signage – Gateways/Routers – Transportation
The G45 can be mounted on metal or plastic but if the lower frequency bands are required, it functions best when mounted on a metal ground-plane. The antenna can still work well with short cable lengths below 1m on plastic structures. Taoglas recommends minimum of 1m cable length for stable antenna performance. When mounted on a ground-plane, the antenna can function well at all frequencies up to 3 meters cable length.
The IP67 rated enclosure is made from a durable, UV resistant ABS material making it resistant to vandalism due to an IK10 rating. An integrated rubber O-ring under the enclosure prevents water ingress underneath the antenna. It is mounted from the inside of the user device enclosure and the small thread allows for installation in the tightest of environments.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Cellular |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 50.15 |
| Width (mm) | 50.15 |
| Height (mm) | 48.5 |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 600MHz - 6000MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 2000 |
| VSWR | <2:1 |
| Weight (g) | 75 |
| RoHS | Yes |
| Gain (Max) | 1 |
