Taoglas

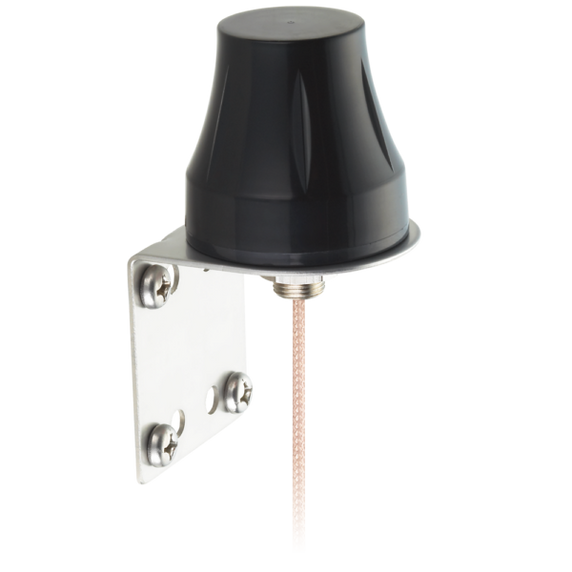

Taoglas Olympian G30 4G/3G/2G LTE Wall Mount Antenna, 1m RG-316
Product Code:
G30.B.108111.wm
Condition:
New
Weight:
0.10 KGS
Width:
5.25
(cm)
Height:
4.80
(cm)
Depth:
5.25
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The G30 Olympian is a high-performance screw mount wideband cellular antenna for external use on vehicles and outdoor assets worldwide. Omni-directional high gain and high efficiency across all bands ensure constant reception and transmission. This is vital for today’s high data bandwidth applications in video and mobile broadband.
Durable UV resistant ABS housing is resistant to vandalism and direct attack. At only 48mm height it complies with the latest EU height restrictions directives for roof-mounted objects. This antenna is mounted on metal and plastic structures and is locked from the inside of the structure by a nut. Adhesive foam at the base provides a watertight seal to the mounting structure. High quality waterproof and corrosion-resistant Teflon jacket RG316 is used for the cable.
Two of these G30 separated at distance from each other are ideal for the latest LTE MIMO spatial diversity applications.
Customized cable length and connectors are available. Taoglas recommends a minimum cable length of 70mm when used on a ground plane to achieve an efficiency of greater than 40% in the 900MHz band and greater than 60% in the 1800MHz band. For longer cable lengths and if 700MHz band is required, it is necessary to use the MA740 Pantheon for 4G/3G/2G or the MA741 4G/3G/2G MIMO Pantheon.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Cellular |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 50.25 |
| Width (mm) | 50.25 |
| Height (mm) | 48 |
| Cable Type | RG-178 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 824MHz - 2170MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 1000 |
| VSWR | <2:1 |
| Weight (g) | 66 |
| RoHS | Yes |
| Gain (Max) | 3 |
5 customers are viewing this product
Details
The G30 Olympian is a high-performance screw mount wideband cellular antenna for external use on vehicles and outdoor assets worldwide. Omni-directional high gain and high efficiency across all bands ensure constant reception and transmission. This is vital for today’s high data bandwidth applications in video and mobile broadband.
Durable UV resistant ABS housing is resistant to vandalism and direct attack. At only 48mm height it complies with the latest EU height restrictions directives for roof-mounted objects. This antenna is mounted on metal and plastic structures and is locked from the inside of the structure by a nut. Adhesive foam at the base provides a watertight seal to the mounting structure. High quality waterproof and corrosion-resistant Teflon jacket RG316 is used for the cable.
Two of these G30 separated at distance from each other are ideal for the latest LTE MIMO spatial diversity applications.
Customized cable length and connectors are available. Taoglas recommends a minimum cable length of 70mm when used on a ground plane to achieve an efficiency of greater than 40% in the 900MHz band and greater than 60% in the 1800MHz band. For longer cable lengths and if 700MHz band is required, it is necessary to use the MA740 Pantheon for 4G/3G/2G or the MA741 4G/3G/2G MIMO Pantheon.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Cellular |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 50.25 |
| Width (mm) | 50.25 |
| Height (mm) | 48 |
| Cable Type | RG-178 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 824MHz - 2170MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 1000 |
| VSWR | <2:1 |
| Weight (g) | 66 |
| RoHS | Yes |
| Gain (Max) | 3 |
