Taoglas

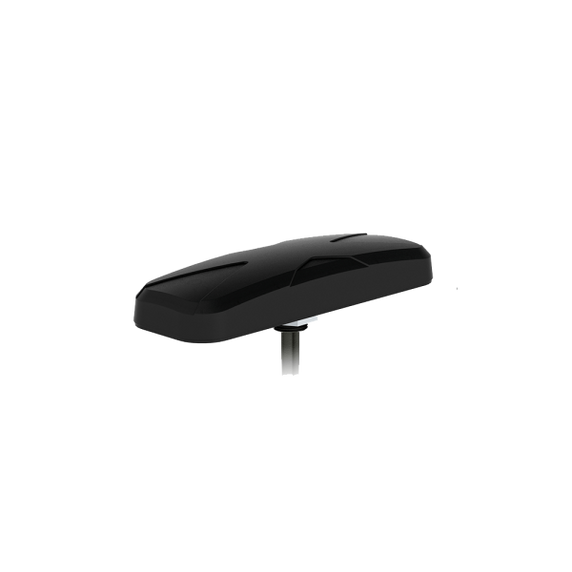

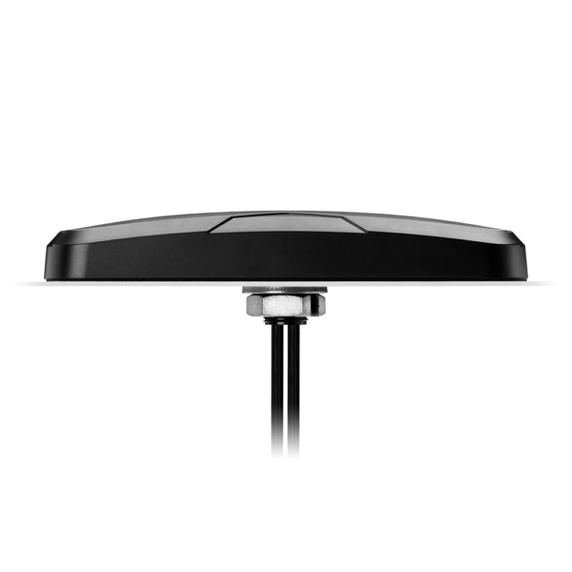

Taoglas Monsoon MA170 2*5G/4G MIMO Permanent Mount Antenna
Product Code:
MA170.A.BI.001
Condition:
New
Weight:
0.55 KGS
Width:
6.90
(cm)
Height:
3.10
(cm)
Depth:
20.40
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The MA170 antenna is a custom profile, fully IP69K Waterproof external M2M antenna for use on containers for global telematics services. The Taoglas Monsoon MA170 antenna is a custom profile, fully IP69K Waterproof external M2M antenna for use on containers for global telematics services. The MA170 delivers best in class 5G/4G antenna performance.
Typical applications include:
-HD Video over LTE
-First Responder and Emergency Services
-Intelligent Transport Systems
-Internet of Things (IoT market)
-High Definition Video Broadcast Systems
-Wireless LTE MIMO M2M Devices
-Digital Signage
LTE 4G applications demand high speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges.
Taoglas also takes care to have high isolation between the two MIMO antennas to prevent self-interference. The MA170 does not require a ground plane. Low loss cables are used to keep efficiency high over long cable lengths. In contrast, smaller MIMO antennas with poorer quality thinner cables will have much reduced efficiency and isolation, which would lead to a large drop in system throughput or drops, and
may indeed not make a system connection at all.
The antenna cable length and connector type can be customizable.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination, Cellular |
| IP Rating | IP69K |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 204 |
| Width (mm) | 69 |
| Height (mm) | 31 |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 600MHz - 6000MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | 02:01 |
| Weight (g) | 550 |
| RoHS | Yes |
| Gain (Max) | 2 |
