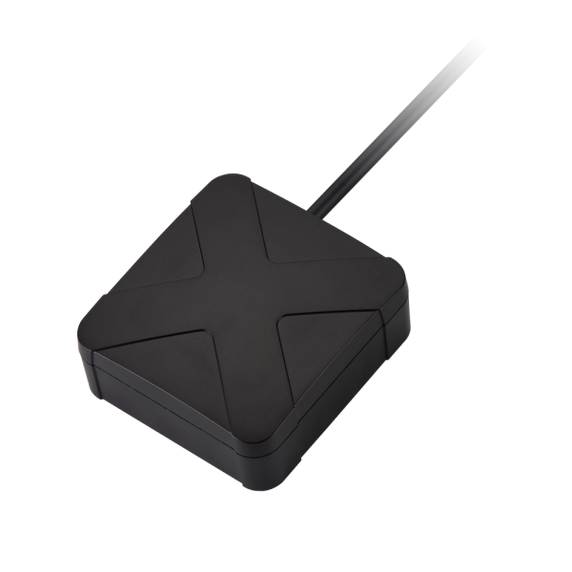

Taoglas Magma X2 GNSS L1/L5/L-Band Magnetic Mount Antenna with 2m RG-174 and SMA(M)ST

The Taoglas Magma X2 AA.215, is a compact, multi-band GNSS, high-performance magnetic mount antenna, for fast fix, high-precision GNSS accuracy. The AA.215 utilizes an advanced 45*45*10mm, wide-band dual-stacked ceramic patch antenna with optimized gain for GPS L1/L2, Galileo, GLONASS, BeiDou, and L-Band bands.

Typical Applications Include:

• Precision Agriculture
• Navigation
• Robotics and Autonomous Vehicles
• Transportation and Telematics

The Magma X2 exhibits excellent radiation patterns and has been optimized to cover the bands required for the next generation of L1/L5 GNSS receivers that are currently on the market. It has been designed as a premium solution for high-precision GNSS systems by including L-Band coverage, for when GNSS correction services are utilized. L-Band correction services use GNSS systems to decode satellite transmissions and will output a correction stream, enabling a high-precision system to reach genuine cm-level accuracy.

The robust ABS enclosure is IP67-rated, allowing the product to be used with confidence in harsh environments where precise positioning is required. The AA.215 comes with 2m of RG-174 cable and SMA(M) connector as standard but as with all Taoglas products, cable and connectors are fully customizable depending on your requirements. For further information please contact your regional Taoglas customer support team to request these services or additional support to integrate the Magma X2 and test this antenna’s performance with your device.
