Taoglas

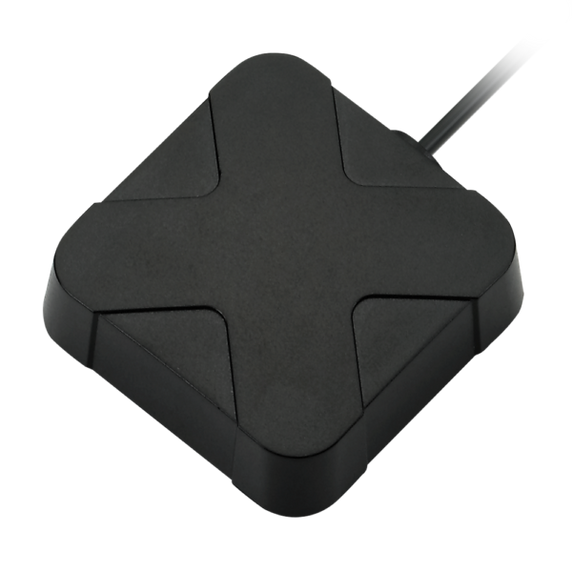

Taoglas Magma X IP67 GPS/GLONASS/GALILEO/BeiDou Magnetic Mount Antenna
Product Code:
AA.170.301111
Condition:
New
Weight:
0.10 KGS
Width:
4.98
(cm)
Height:
1.71
(cm)
Depth:
5.24
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The AA.170 Magma is a GPS/GLONASS/GALILEO/BeiDou external automotive antenna, ideal for robust, covert installations where durability and small size is paramount. This low profile, externally mounted antenna is tuned for stable operation over GPS-GLONASS-GALILEO-BeiDou frequency bands and is used in the following typical applications
- Advanced telematics and M2M applications
- Fleet management
Axial ratio is 3 at the main GPS band, indicating good right-hand circular polarization, which increases location accuracy and speed of lock in the GNSS system. Standard cable and connector version is 3m of RG174 and an SMA(M) connector. A front-end SAW reduces out-band interference from any nearby wireless transmitters, helping prevent LNA compression and burnout. The Magma antenna is manufactured in first-tier TS1949 automotive approved facility, with full PPAP and IMDS documentation available. Cable length and connector type are customizable upon request.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, GNSS |
| GNSS Type | Active GNSS |
| GNSS Bands | L1 |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Magnetic |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 52.4 |
| Width (mm) | 49.8 |
| Height (mm) | 17.1 |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 1559MHz - 1610MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | 2 |
| Weight (g) | 90 |
| RoHS | Yes |
| Gain (Max) | 32 |
