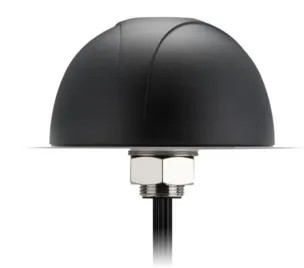

Taoglas MA750.B.ABICG.007 Pantheon Screwmount 5M GNSS-RG-174 SMA(M):LTE(1&2)-CFD-200 SMA(M):2.4/5.8GHz(1&2) CFD-200 RP-SMA(M)

The Taoglas Pantheon Series is an up to 5-in-1 next-generation permanent mount antenna designed for exceptional performance when used in conjunction with the next generation of routers. It has been designed for high precision applications and provides excellent performance on the full GNSS spectrum including (GPS/QZSS L1, GLONASS G1, Galileo E1, Bei Dou B1, as well as SBAS for high-performance cm-level positional accuracy which allows the user to achieve higher location accuracy, as well as stability of position tracking in urban environments with their device and with the next generation of routers.

The 5G/4G antennas are wideband 600MHz to 6GHz to cover the full spectrum of 5G frequencies. The Wi-Fi antenna includes Wi-Fi 802.11n and emerging 802.11ac capabilities to ensure your design is future-proof for the next generation of Router connectivity. Combining GNSS, 5G/4G, Wi-Fi, and an incredibly compact PC enclosure with a fully IP67 rated waterproof, The Pantheon Series is most powerful, compact combination high-performance antenna for your application.

Typical Applications Include:

• Public Safety
• Passenger Bus and Rail Services
• Digital Signage
• Commercial Transportation and Fleet Management

FEATURES

• Low-profile Permanent Mount Enclosure
• 5 Antennas in one enclosure
• Covers 5G/4G MIMO from 600-6000MHz
• Wi-Fi MIMO 2.4/5.8GHz
• GNSS
• IP67 Waterproof Enclosure
• Dimensions: Ø143.2mm * 82.4mm
• RoHS & Reach Compliant
