Taoglas

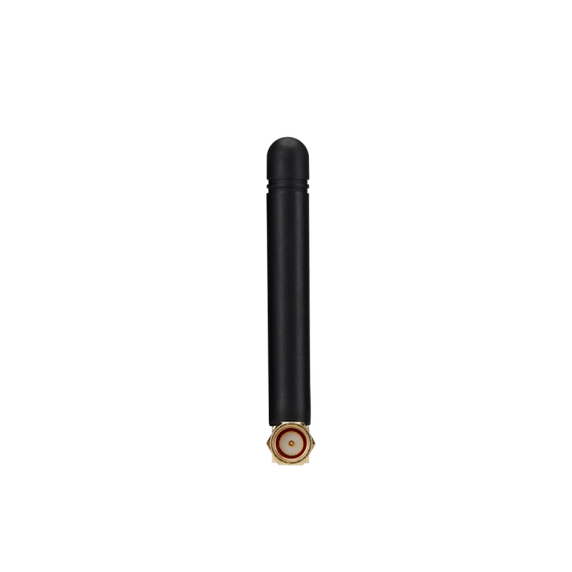

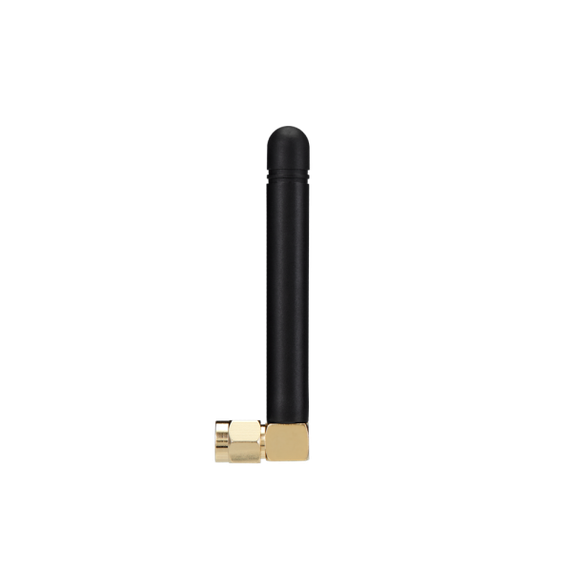

Taoglas LTE Wideband Terminal Mount Monopole Antenna
Product Code:
TG.42.0112
Condition:
New
Weight:
0.10 KGS
Width:
1.70
(cm)
Height:
4.50
(cm)
Depth:
6.30
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Taoglas TG.42.0112 is a small terminal mount antenna designed to be directly mounted onto devices using the SMA Male right angle connector at the base of the enclosure. The TG.42 has been expertly designed to cover all major worldwide 4G LTE bands in a miniature form factor, with high efficiency and optimum peak gain.
The TG.42.0112 weighs just 8g so it is perfect for applications that may be weight sensitive such as UAVs and robotics. With the capability to cover Band 71, the TG.42 is one of the smallest wide bandwidth(600-3000MHz) terminal antennas on the market.
Typical Applications Include:
– Gateways and Routers
– Remote Monitoring
– Industrial IoT
– Smart Meters
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Cellular |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 63 |
| Width (mm) | 17 |
| Height (mm) | 45 |
| Polarity | Linear |
| Frequency Range | 600MHz - 3000MHz |
| Connector Polarity | None |
| VSWR | <2 |
| Weight (g) | 8 |
| RoHS | Yes |
| Gain (Max) | 3.62 |
