Taoglas

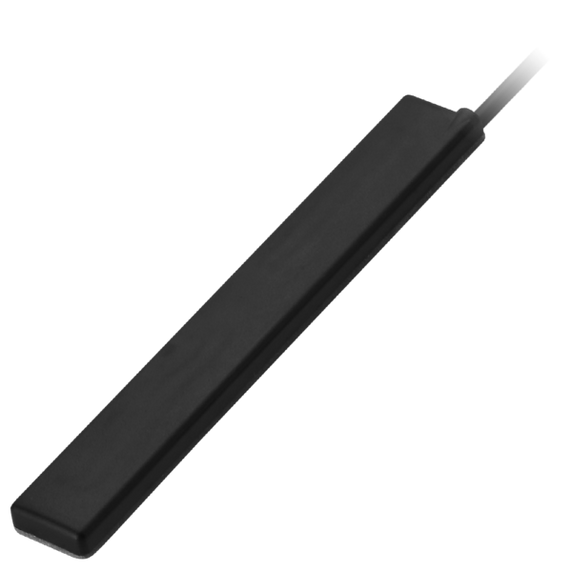

Taoglas I-Bar GSA.8821 3G/2G Cellular Adhesive Antenna, SMA(M), 3m RG-174
Product Code:
GSA.8821.B.301111
Condition:
New
Weight:
0.10 KGS
Width:
1.47
(cm)
Height:
0.58
(cm)
Depth:
10.67
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
GSA.8821 I-Bar Penta-band Cellular Antenna is flexible and robust. The slim-line design is ideal for covert and convenient installation in automotive vehicles. Its omnidirectional gain across all bands ensures constant reception and transmission. This dipole antenna is designed to be mounted on glass or plastic (not on metal). Cables and connectors are fully customizable. It comes with strong 3M double-sided adhesive for a permanent and secure fix to your vehicle interior.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Cellular |
| IP Rating | IP65 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 106.7 |
| Width (mm) | 14.7 |
| Height (mm) | 5.8 |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 824MHz - 2170MHz |
| Connector Polarity | None |
| Cable Length (mm) | 3000 |
| VSWR | <2:1 |
| Weight (g) | 40 |
| RoHS | Yes |
| Gain (Max) | 0.67 |
