Taoglas

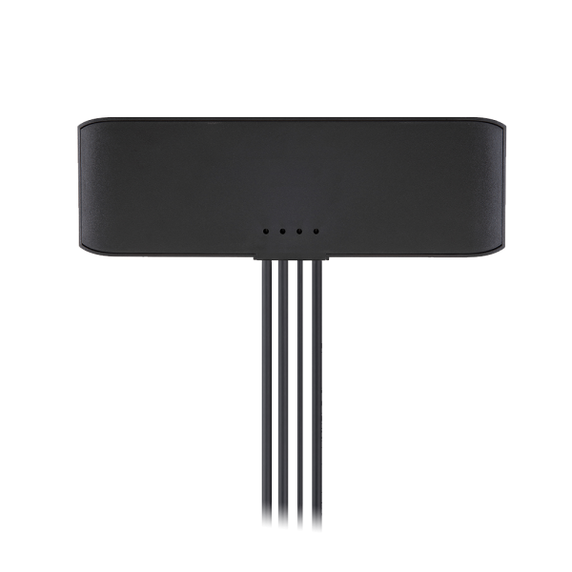

Taoglas High Temperature Genesis 4-in-1 GNSS, 2*Cellular, Wi-Fi Adhesive Mount Low-Profile Antenna
Product Code:
MA244.LBIC.002
Condition:
New
Weight:
0.33 KGS
Width:
6.80
(cm)
Height:
1.27
(cm)
Depth:
20.58
(cm)
$113.51
The Taoglas Genesis MA244 is a 4in1 combination, adhesive mount lightweight antenna, ideal for use in telematics, transportation and remote monitoring applications. This unique antenna delivers powerful 5G/4G MIMO antenna technology for cellular, covering a number of 5G FR1 bands and worldwide LTE, GPS/GLONASS/Galileo and dual-band Wi-Fi®.
The GPS/GLONASS/GALILEO antenna has been carefully designed to work equally well on both GPS/GALILEO and GLONASS bands, leading to higher location accuracy and stability of tracking in urban environments. Both 2.4 and 5.8GHz are covered on the Wi-Fi® antenna which exhibits a peak gain of greater than 4dBi and efficiency of up to 64%. The omnidirectional cellular antennas show efficiency of up to 72% depending on the bands used.
The robust PC/ABS enclosure is fully IP65 rated and designed to withstand the high temperatures of up to +85c normally associated with transportation and telematics applications.
The MA244 is an ideal solution for next-generation wireless technology systems, such as Telematics, Transportation, Fleet Management and Autonomous Robotics, all use cases that demand reliable, high-speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required in these challenging applications.
Supplied with 1m of low loss TGC-200 cable and SMA(M) connectors as standard, cable length and connector types are fully customizable.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination |
| IP Rating | IP65 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 205.8 |
| Width (mm) | 68 |
| Height (mm) | 12.7 |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 600MHz - 6000MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 1000 |
| VSWR | 02:01 |
| Weight (g) | 330 |
| RoHS | Yes |
| Gain (Max) | 2.78 |
