Taoglas

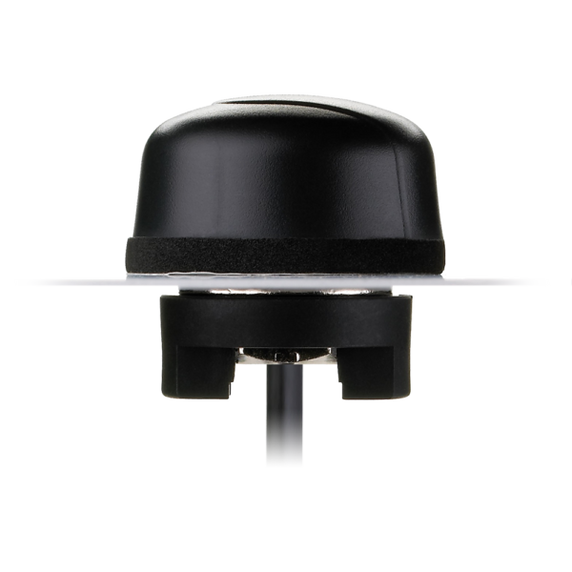

Taoglas Hercules IS.04 868MHz 2dBi Permanent Mount Antenna, 3m RG-174
Product Code:
IS.04.B.301111
Condition:
New
Weight:
0.16 KGS
Width:
4.90
(cm)
Height:
2.90
(cm)
Depth:
4.90
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The 868MHz Hercules ISM antenna is a high-performance steel thread-mount ISM antenna for external use on vehicles and outdoor assets worldwide. Omni-directional high gain across all bands ensures constant reception and transmission. Durable UV resistant PC housing is resistant to vandalism and direct attack. At only 29 mm height it complies with the latest EU height restrictions directives for roof-mounted objects, with a diameter of 52 mm. Designed to not catch on tree-branches. The antenna can be mounted on metal structures.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, ISM/LoRA |
| IP Rating | IP65 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 49 |
| Width (mm) | 49 |
| Height (mm) | 29 |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 860MHz - 880MHz |
| Connector Polarity | None |
| Cable Length (mm) | 3000 |
| VSWR | 2 |
| Weight (g) | 152 |
| RoHS | Yes |
| Gain (Max) | 2 |
5 customers are viewing this product
Details
The 868MHz Hercules ISM antenna is a high-performance steel thread-mount ISM antenna for external use on vehicles and outdoor assets worldwide. Omni-directional high gain across all bands ensures constant reception and transmission. Durable UV resistant PC housing is resistant to vandalism and direct attack. At only 29 mm height it complies with the latest EU height restrictions directives for roof-mounted objects, with a diameter of 52 mm. Designed to not catch on tree-branches. The antenna can be mounted on metal structures.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, ISM/LoRA |
| IP Rating | IP65 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 49 |
| Width (mm) | 49 |
| Height (mm) | 29 |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 860MHz - 880MHz |
| Connector Polarity | None |
| Cable Length (mm) | 3000 |
| VSWR | 2 |
| Weight (g) | 152 |
| RoHS | Yes |
| Gain (Max) | 2 |
