Taoglas

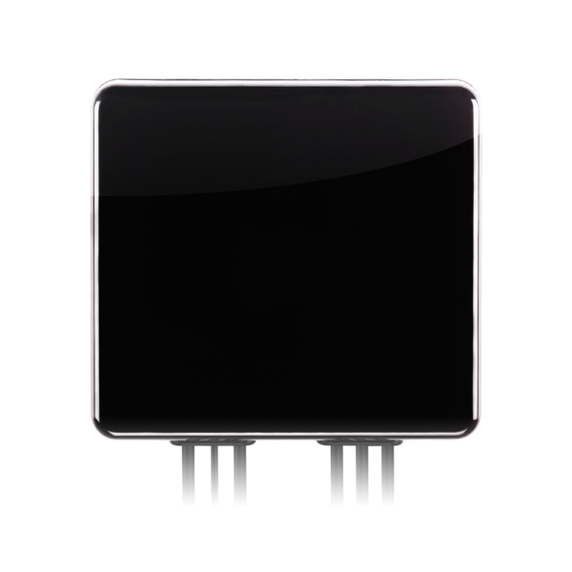

Taoglas Guardian 6in1 Adhesive Mount 2*5G/4G MIMO(600-6000MHz) 3*Wi-Fi MIMO GNSS Antenna
Product Code:
MA931.A.LBICGH.008
Condition:
New
Weight:
0.92 KGS
Width:
13.40
(cm)
Height:
2.00
(cm)
Depth:
14.60
(cm)
$246.85
The MA931 Guardian is a next-generation combination antenna. The first-panel antenna worldwide designed for IoT Gateway and Router devices. It is a low profile 6in1 wall and adhesive mount antenna. It is a heavy-duty, fully IP67 waterproof external M2M antenna for use by RF professionals in IoT Gateway and Routers, HD Video Streaming, Transportation and Remote Monitoring Applications.
This antenna delivers powerful MIMO antenna technology for worldwide 5G/4G bands between 600MHz and 6GHz, dual-band 2.4/5.8GHz Wi-Fi®, plus GPS-GLONASS-GALILEO-BeiDou for location accuracy. It enables designers to cover a wide range of technologies by installing a single antenna. 5G/4G wireless applications demand high-speed data uplink and downlink.
High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation among these antennas to prevent self-interference. Low loss cables used to keep efficiency high over long cable lengths. The GPS-GLONASS-GALILEO-BeiDou active antenna has been carefully designed for excellent performance across all GNSS bands, leading to higher location accuracy and stability of tracking in urban environments.
The housing is IP67 waterproof and comes with a 3M foam adhesive. The antenna can be mounted internally or externally on a vehicle. The MA931 comes with 1 meter, low loss KSR-200P coaxial cables for the 5G/4G and Wi-Fi® antennas, and RG174 coaxial cable for the GNSS antenna as standard. Customized cables and connector versions are also available.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 146 |
| Width (mm) | 134 |
| Height (mm) | 20 |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | RHCP, Linear |
| Frequency Range | 600MHz - 6000MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 2000 |
| VSWR | 3:1 |
| Weight (g) | 921 |
| RoHS | Yes |
| Gain (Max) | 4.5 |
5 customers are viewing this product
Details
The MA931 Guardian is a next-generation combination antenna. The first-panel antenna worldwide designed for IoT Gateway and Router devices. It is a low profile 6in1 wall and adhesive mount antenna. It is a heavy-duty, fully IP67 waterproof external M2M antenna for use by RF professionals in IoT Gateway and Routers, HD Video Streaming, Transportation and Remote Monitoring Applications.
This antenna delivers powerful MIMO antenna technology for worldwide 5G/4G bands between 600MHz and 6GHz, dual-band 2.4/5.8GHz Wi-Fi®, plus GPS-GLONASS-GALILEO-BeiDou for location accuracy. It enables designers to cover a wide range of technologies by installing a single antenna. 5G/4G wireless applications demand high-speed data uplink and downlink.
High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation among these antennas to prevent self-interference. Low loss cables used to keep efficiency high over long cable lengths. The GPS-GLONASS-GALILEO-BeiDou active antenna has been carefully designed for excellent performance across all GNSS bands, leading to higher location accuracy and stability of tracking in urban environments.
The housing is IP67 waterproof and comes with a 3M foam adhesive. The antenna can be mounted internally or externally on a vehicle. The MA931 comes with 1 meter, low loss KSR-200P coaxial cables for the 5G/4G and Wi-Fi® antennas, and RG174 coaxial cable for the GNSS antenna as standard. Customized cables and connector versions are also available.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 146 |
| Width (mm) | 134 |
| Height (mm) | 20 |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | RHCP, Linear |
| Frequency Range | 600MHz - 6000MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 2000 |
| VSWR | 3:1 |
| Weight (g) | 921 |
| RoHS | Yes |
| Gain (Max) | 4.5 |
