Taoglas

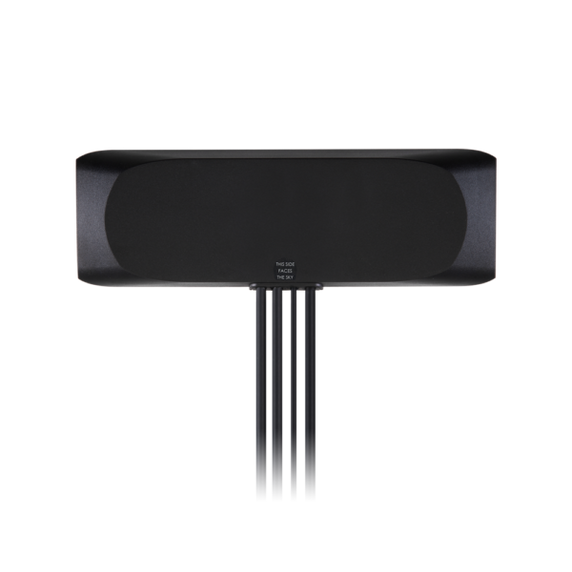

Taoglas Genesis MA245.LBIC.002 Genesis 4-in-1 GNSS, 2*LTE & Wi-Fi Low Profile Adhesive Mount Antenna 205.8*68*12.4mm
Product Code:
MA245.LBIC.002
Condition:
New
Weight:
0.30 KGS
Width:
6.80
(cm)
Height:
1.27
(cm)
Depth:
20.58
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The MA245 Genesis antenna is an omnidirectional, fully IP65 waterproof external 4in1 M2M antenna for use in telematics, transportation, and remote monitoring applications.
This unique antenna delivers powerful MIMO antenna technology for cellular/LTE, GPS-GLONASS plus Wi-Fi® dual-band 2.4/5 GHz for next-generation multiple wireless technology systems, such as telematics. Potential uses are new fleet management and applications that demand high-speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges.
The GPS/GLONASS/GALILEO antenna has been carefully designed to work equally well on both GPS/GALILEO and GLONASS bands, leading to higher location accuracy and stability of tracking in urban environments. Cable length and connector types are customizable.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination |
| IP Rating | IP65 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | FAKRA |
| Length (mm) | 205.8 |
| Width (mm) | 68 |
| Height (mm) | 12.7 |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 600MHz - 6000MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | 2:1 |
| Weight (g) | 300 |
| RoHS | Yes |
| Gain (Max) | -3.1 |
5 customers are viewing this product
Details
The MA245 Genesis antenna is an omnidirectional, fully IP65 waterproof external 4in1 M2M antenna for use in telematics, transportation, and remote monitoring applications.
This unique antenna delivers powerful MIMO antenna technology for cellular/LTE, GPS-GLONASS plus Wi-Fi® dual-band 2.4/5 GHz for next-generation multiple wireless technology systems, such as telematics. Potential uses are new fleet management and applications that demand high-speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges.
The GPS/GLONASS/GALILEO antenna has been carefully designed to work equally well on both GPS/GALILEO and GLONASS bands, leading to higher location accuracy and stability of tracking in urban environments. Cable length and connector types are customizable.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination |
| IP Rating | IP65 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | FAKRA |
| Length (mm) | 205.8 |
| Width (mm) | 68 |
| Height (mm) | 12.7 |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 600MHz - 6000MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | 2:1 |
| Weight (g) | 300 |
| RoHS | Yes |
| Gain (Max) | -3.1 |
