Taoglas

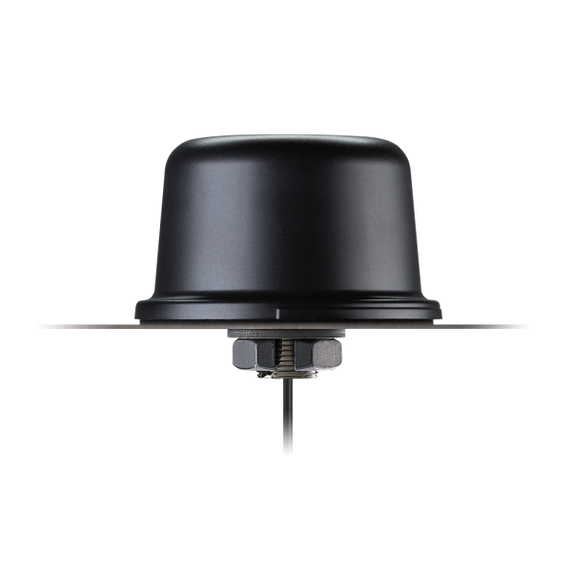

Taoglas Colosseum Passive Quad Helix covering all major GNSS bands
Product Code:
QHA.50.A.301111
Condition:
New
Weight:
0.26 KGS
Width:
9.40
(cm)
Height:
5.70
(cm)
Depth:
9.40
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Colosseum QHA.50.A.301111 is a passive Quad Helix Antenna which has been carefully designed to work across all major GNSS bands, leading to higher location accuracy and stability of tracking in urban environments. The quad-helix antenna design has an even gain across the hemisphere giving almost perfect Axial Ratio which makes it resilient to multipath rejection.
The QHA.50 is a new passive GNSS external product which has been added to Taoglas’ already extensive High Precision antenna range. The Colosseum QHA.50 covers all major GNSS bands including GPS L1/L2/L5/L6, GLONASS L1/L2/L3, Galileo E5A/E5B/E6, BeiDou B1/B1-2/B2/B3. The QHA.50 is a new passive GNSS external product which has been added to Taoglas’ already extensive High Precision antenna range.
Typical Applications include:
– Agriculture
– Asset Tracking
– Autonomous Driving
The QHA.50, IP67 rated enclosure is manufactured from UV resistant ASA making it an ideal solution for external applications operating in harsh environments.
For Cable runs longer than 3 meters, Taoglas recommends using the Active version of the Colosseum, AQHA.50.A.301111.
The Cable length and connector are fully customizable.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, GNSS |
| GNSS Type | Passive GNSS |
| GNSS Bands | L1/L2/L5/L6 |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 94 |
| Width (mm) | 94 |
| Height (mm) | 57 |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 1160MHz - 1610MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | 1.92 |
| Weight (g) | 251.7 |
| RoHS | Yes |
| Gain (Max) | 2 |
