Taoglas

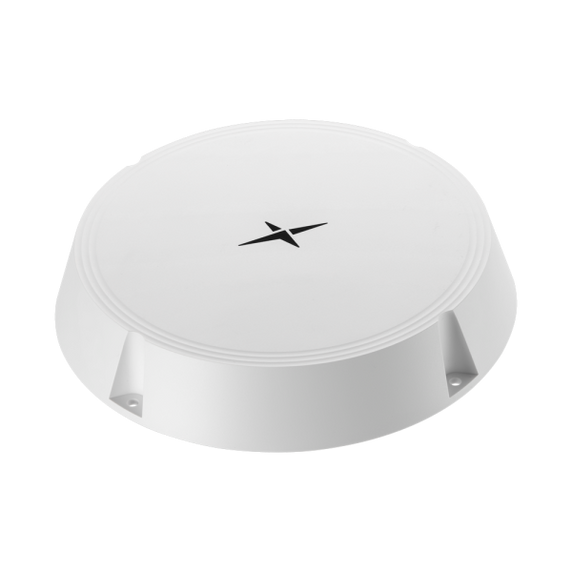

Taoglas C-Band 5G/4G MIMO Ceiling Mount Omnidirectional Antenna
Product Code:
CMA100.A.BIVW.002
Condition:
New
Weight:
0.15 KGS
Width:
20.00
(cm)
Height:
3.50
(cm)
Depth:
20.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Asteor CMA100 is a ceiling/wall mount antenna designed for use in-building to provide coverage on CBand/CBRS frequencies from 3300 to 4200MHz. This discrete product can be mounted inconspicuously on office walls or ceilings for private 5G networks. The antenna is mounted either by thread or by the 4 cornered through holes.
The C-Band frequency is becoming an extremely important part of the 5G spectrum, the C-Band provides an open frequency span for people who wish to establish a private network on this band for secure networking and fast speeds. C-band technology helps reduce outages and downtime in 5G networks. It accomplishes this by improving the reliability and strength of the signal.
Typical Applications include
– Offices and Industrial Plants
– Stadiums and Theatres
– Warehouses
– First Responder Bases
Taoglas offers customizable cable lengths, cable types and connector types.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination, Cellular |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 200 |
| Width (mm) | 200 |
| Height (mm) | 35 |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 3300MHz - 4200MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 300 |
| VSWR | <2 |
| Weight (g) | 150 |
| RoHS | Yes |
| Gain (Max) | 4.55 |
5 customers are viewing this product
Details
The Asteor CMA100 is a ceiling/wall mount antenna designed for use in-building to provide coverage on CBand/CBRS frequencies from 3300 to 4200MHz. This discrete product can be mounted inconspicuously on office walls or ceilings for private 5G networks. The antenna is mounted either by thread or by the 4 cornered through holes.
The C-Band frequency is becoming an extremely important part of the 5G spectrum, the C-Band provides an open frequency span for people who wish to establish a private network on this band for secure networking and fast speeds. C-band technology helps reduce outages and downtime in 5G networks. It accomplishes this by improving the reliability and strength of the signal.
Typical Applications include
– Offices and Industrial Plants
– Stadiums and Theatres
– Warehouses
– First Responder Bases
Taoglas offers customizable cable lengths, cable types and connector types.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination, Cellular |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 200 |
| Width (mm) | 200 |
| Height (mm) | 35 |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 3300MHz - 4200MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 300 |
| VSWR | <2 |
| Weight (g) | 150 |
| RoHS | Yes |
| Gain (Max) | 4.55 |
