Taoglas

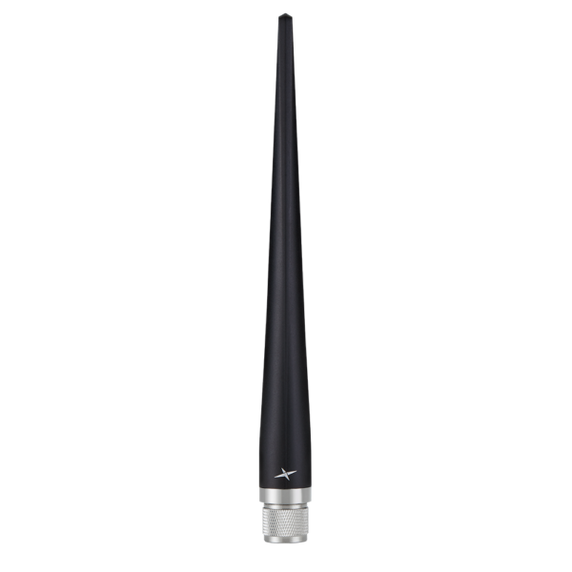

Taoglas Blade 868/915MHz Omnidirectional Dipole Terminal Mount Antenna
Product Code:
TD.95.6H31
Condition:
New
Weight:
0.10 KGS
Width:
2.30
(cm)
Height:
22.80
(cm)
Depth:
2.30
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Taoglas Blade TD.95.6H31 is a high performance, terminal mount omnidirectional dipole antenna, designed for use with a multiple of SigFox / LoRA / ISM network applications. It covers both widely used frequencies of 868 and 915MHz. The TD.95 uses a robust IP67 rated PC/ABS enclosure, making it ideal for harsh outdoor applications. The TD.95 is a dipole antenna which means that this antenna performs well without a ground plane. It reaches efficiencies of at least 57% with 1dBi Gain whilst maintaining an Omni-directional pattern for constant reception/transmission.
Typical Applications Include:
– Remote Asset and Metering Monitoring
– Mesh Networks
– Digital Signage
Measuring just 228mm in height and with a diameter of just 22.8mm, the TD.95 is also available in gray, TD.95.6H31G, for more inconspicuous installation. The TD.95 antenna is supplied with a direct mount N-Type connector, however, this can be customized subject to MOQ and NRE.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, ISM/LoRA |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | N Type |
| Length (mm) | 22.8 |
| Width (mm) | 22.8 |
| Height (mm) | 228 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 860MHz - 928MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | n/a |
| VSWR | 02:01 |
| Weight (g) | 70 |
| RoHS | Yes |
| Gain (Max) | 3.29 |
