Taoglas

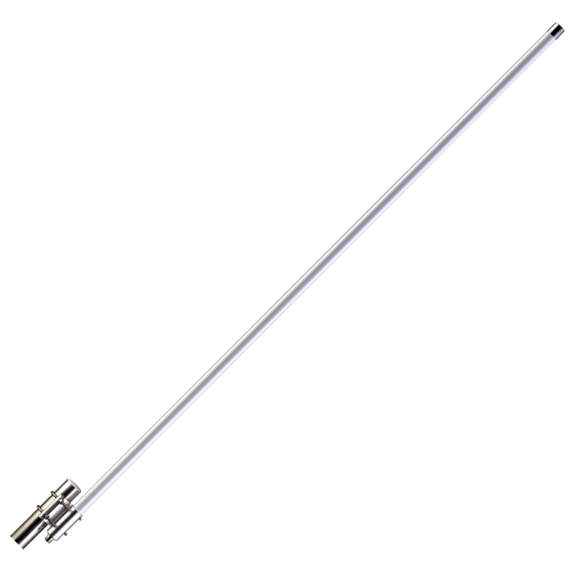

Taoglas Barracuda 868MHz 8dBi Omnidirectional Outdoor Antenna
Product Code:
OMB.868.B08F21
Condition:
New
Weight:
0.72 KGS
Width:
2.60
(cm)
Height:
147.42
(cm)
Depth:
2.60
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The OMB.868.B08F21 is a fiberglass omnidirectional outdoor antenna, operating in the MHz ISM band. Is an ideal outdoor antenna for LoRa Basestations. The antenna has an 8dBi high peak gain, providing the largest area for Low Power Radio (UNB Sigfox, LPRN, LoRA) and mesh networks. applications are in IoT, metering, industrial/environmental monitoring, and asset monitoring. OMB.868 operates at 868MHz, one of the most widely used license-free ISM bands, an 8dBi peak gain. The omnidirectional antenna collinear dipole design means it uniformly in the azimuth with a high gain, providing coverage over long distances, thus minimizing the number of cells or nodes needed in a network.
The UV resistant fiberglass housing enables the OMB antenna to be weathered in all harsh environments, making it more robust and safer than the traditional whip. It has been designed to withstand high wind load. The integrated bracket is perfect for directly mounting the antenna onto a pole or a wall. The connector is the industry standard N-type female. The connector can be customized to MOQ. Other frequencies and gains are available.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, ISM/LoRA |
| IP Rating | IP65 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Wall/Pole |
| Termination Style | Connector |
| Antenna Connector Type | N Type |
| Length (mm) | 26 |
| Width (mm) | 26 |
| Height (mm) | 1474.16 |
| Connector Body Style | Straight |
| Polarity | Vertical |
| Frequency Range | 860MHz - 880MHz |
| Connector Polarity | Normal |
| VSWR | 1.5:1 |
| Weight (g) | 720 |
| RoHS | Yes |
| Gain (Max) | 3.5 |
