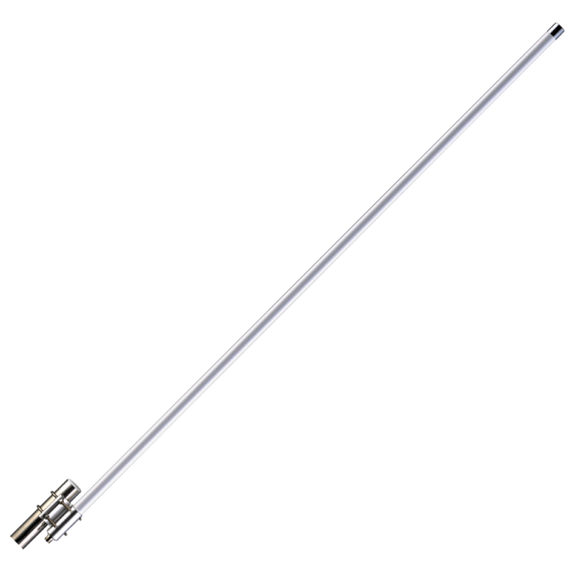

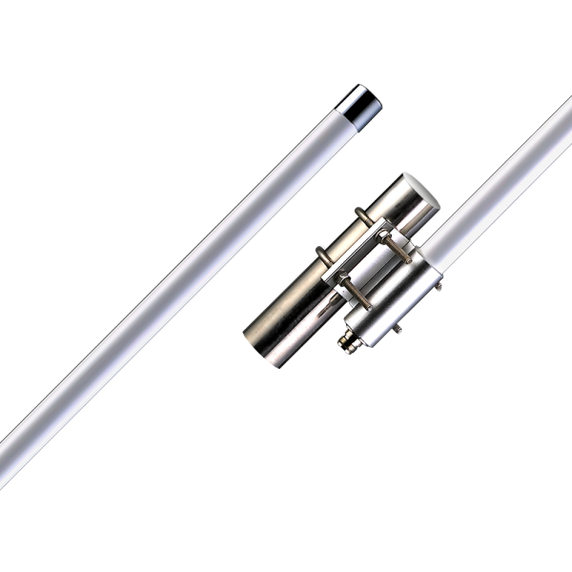

Taoglas Barracuda 868MHz 5dBi Omnidirectional Outdoor Antenna
Product Code:
OMB.868.B05F21
Condition:
New
Weight:
0.82 KGS
Width:
2.60
(cm)
Height:
81.87
(cm)
Depth:
2.60
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Barracuda 868MHz ISM Outdoor antenna is designed to have a long-distance coverage. Omni-directional high gain across all bands ensures constant reception and transmission. The UV resistant coating with fiberglass housing makes this antenna suitable to be mounted in a robust outdoor environment, pole-mounting and the wall-mounting bracket is included. The antenna finds its usage in metering, industrial monitoring, and security applications. This antenna is suitable to use as part of narrow channel M2M Sigfox Network, for simple M2M management in cities. The main applications would be Smart Cities, Utilities, Public Transport.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, ISM/LoRA |
| IP Rating | IP65 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Wall/Pole |
| Termination Style | Connector |
| Antenna Connector Type | N Type |
| Length (mm) | 26 |
| Width (mm) | 26 |
| Height (mm) | 818.7 |
| Connector Body Style | Straight |
| Polarity | Vertical |
| Frequency Range | 860MHz - 880MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | n/a |
| VSWR | 2:1 |
| Weight (g) | 580 |
| RoHS | Yes |
| Gain (Max) | 4.3 |
5 customers are viewing this product
Details
The Barracuda 868MHz ISM Outdoor antenna is designed to have a long-distance coverage. Omni-directional high gain across all bands ensures constant reception and transmission. The UV resistant coating with fiberglass housing makes this antenna suitable to be mounted in a robust outdoor environment, pole-mounting and the wall-mounting bracket is included. The antenna finds its usage in metering, industrial monitoring, and security applications. This antenna is suitable to use as part of narrow channel M2M Sigfox Network, for simple M2M management in cities. The main applications would be Smart Cities, Utilities, Public Transport.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, ISM/LoRA |
| IP Rating | IP65 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Wall/Pole |
| Termination Style | Connector |
| Antenna Connector Type | N Type |
| Length (mm) | 26 |
| Width (mm) | 26 |
| Height (mm) | 818.7 |
| Connector Body Style | Straight |
| Polarity | Vertical |
| Frequency Range | 860MHz - 880MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | n/a |
| VSWR | 2:1 |
| Weight (g) | 580 |
| RoHS | Yes |
| Gain (Max) | 4.3 |
