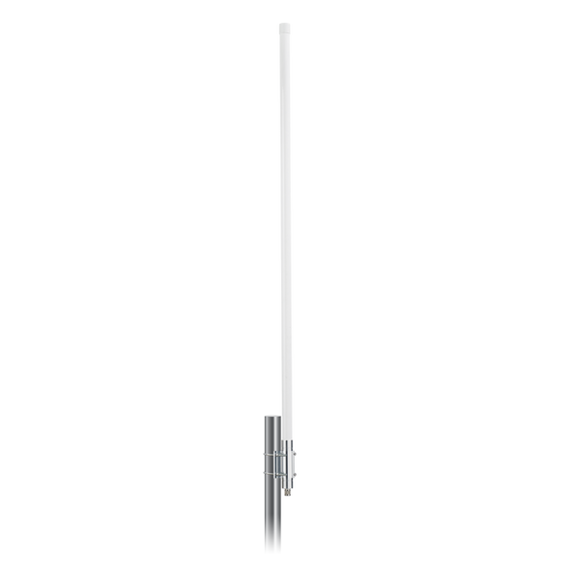

Taoglas Barracuda 6dBi Gain 410MHz Omnidirectional Antenna
Product Code:
OMB.410.B06F21
Condition:
New
Weight:
1.30 KGS
Width:
5.00
(cm)
Height:
52.30
(cm)
Depth:
7.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The OMB.410.B06F21 is a 6dBi gain, fiberglass omnidirectional outdoor antenna, which is designed to cover frequency bands from 410-425MHz. The antenna is designed for applications such as smart grid, smart metering, industrial/environmental monitoring, remote asset monitoring, and mesh network applications.
The OMB.410 operates in the newly awarded Smart Grid frequency band between 410-425MHz with a >6dBi peak gain across the band with an omnidirectional antenna radiation pattern in the azimuth providing excellent coverage over long distances. Coupled with a very low VSWR, this characteristic provides the best performance because the antenna gives maximum coverage range in the horizontal plane over 360 degrees, thus minimizing the number of nodes needed for a mesh network.
The UV resistant fiberglass housing enables the OMB antenna to be utilized in all kinds of harsh environments, making it more robust and safer than traditional whip antennas. It can be connected directly to the access point or telemetry unit or can be mounted on a wall or device surface via the N-type connector.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, ISM/LoRA |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Wall/Pole |
| Termination Style | Connector |
| Antenna Connector Type | N Type |
| Length (mm) | 70 |
| Width (mm) | 50 |
| Height (mm) | 523 |
| Connector Body Style | Straight |
| Polarity | Vertical |
| Frequency Range | 410MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | n/a |
| VSWR | 1.5:1 |
| Weight (g) | 1300 |
| RoHS | Yes |
| Gain (Max) | 3 |
