Taoglas

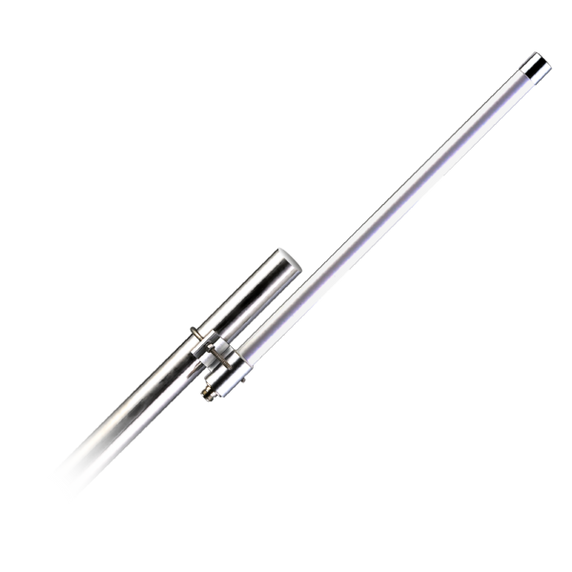

Taoglas Barracuda 450-470MHz 3dBi Omnidirectional Outdoor Antenna
Product Code:
OMB.450.B03F21
Condition:
New
Weight:
0.35 KGS
Width:
2.60
(cm)
Height:
25.30
(cm)
Depth:
2.60
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The OMB.450.B03F21 is a 3dBi 450MHz~470MHz LTE Band 31 / CDMA/ ISM band fiberglass omnidirectional outdoor antenna. The antenna is designed for LTE and other CDMA and ISM applications such as metering, industrial/environmental monitoring, remote asset monitoring and mesh network applications. The omnidirectional antenna radiates uniformly in the azimuth. The collinear dipole array design minimizes losses and provides the best performance because the antenna gives maximum coverage range in the horizontal plane over 360 degrees, thus minimizing the number of nodes needed for a mesh network.
The UV resistant fiberglass housing enables the OMB antenna to be utilized in all kinds of harsh environments, making it more robust and safer than traditional whip antennas. It can be connected directly to the access point or telemetry unit or can be mounted on the wall/device surface via the N-type connector.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, ISM/LoRA |
| IP Rating | IP65 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Wall/Pole |
| Termination Style | Connector |
| Antenna Connector Type | N Type |
| Length (mm) | 26 |
| Width (mm) | 26 |
| Height (mm) | 253 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 450MHz - 470MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | n/a |
| VSWR | 1.3 |
| Weight (g) | 350 |
| RoHS | Yes |
| Gain (Max) | 4.1 |
