Taoglas Barracuda 433MHz 3dBi Omnidirectional Outdoor Antenna

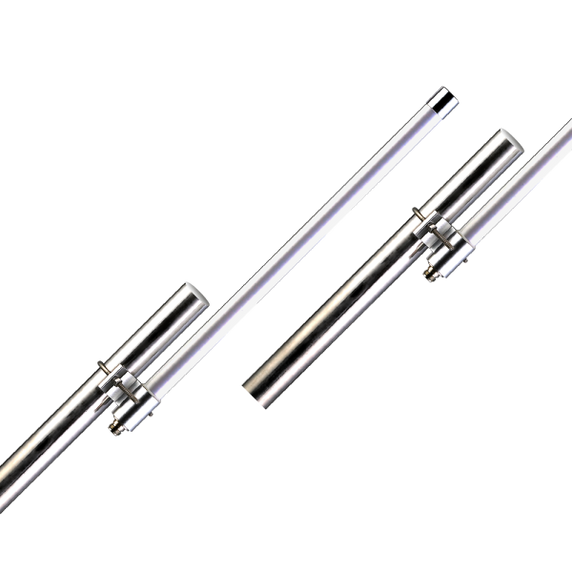

The OMB.433.B03F21 IoT antenna for metering, industrial, and environmental monitoring operates in the 433 MHz ISM band. The fiberglass Omni-directional outdoor antenna is also designed for remote asset monitoring, and mesh network applications. The OMB.433 operates at 433MHz, one of the most widely used license-free ISM bands, with a 3dBi peak gain. The omnidirectional antenna radiates uniformly in the azimuth.

This collinear design characteristic provides the best performance, giving optimized coverage and therefore longer range in the horizontal plane over 360 degrees, thus minimizing the number of nodes needed for a mesh network. The UV resistant fiberglass housing enables the OMB antenna to be utilized in all kinds of harsh environments, making it more robust and safer than traditional whip antennas. It can be connected directly to the access point or telemetry unit or can be mounted on the wall or device surface via the N-type connector. Another larger model, the OMB.433.B06F21 with 6dBi peak gain, also working in the 433MHz ISM band, is also available. Gain and connector customizable, subject to MOQ.
