Taoglas

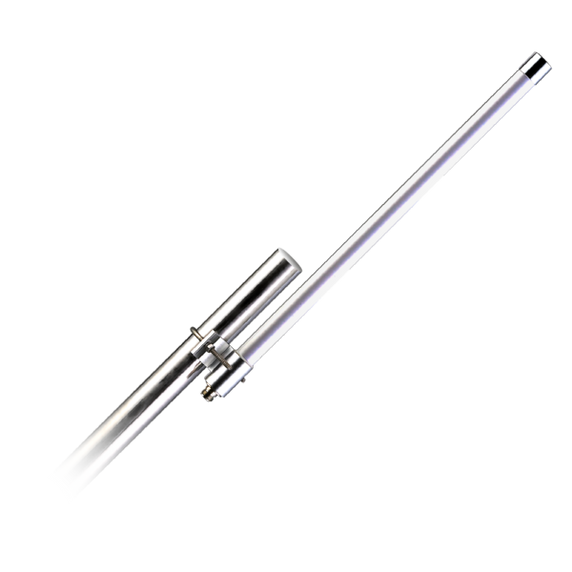

Taoglas Barracuda 3G/2G 3dBi Omnidirectional Outdoor Antenna
Product Code:
OMB.8912.03F21
Condition:
New
Weight:
0.35 KGS
Width:
2.60
(cm)
Height:
28.90
(cm)
Depth:
2.60
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Penta-band cellular Barracuda Outdoor antenna is designed to have long-distance coverage. Omni-directional high gain across all bands ensures constant reception and transmission. The UV resistant coating with fiberglass housing makes this antenna suitable to be mounted in a robust outdoor environment, pole-mounting and the wall-mounting bracket is included. The antenna finds its usage in boosting cellular coverage in remote areas or difficult environments indoors and outdoors.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Cellular |
| IP Rating | IP65 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Wall/Pole |
| Termination Style | Connector |
| Antenna Connector Type | N Type |
| Length (mm) | 26 |
| Width (mm) | 26 |
| Height (mm) | 289 |
| Connector Body Style | Straight |
| Polarity | Vertical |
| Frequency Range | 824MHz - 2170MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | n/a |
| VSWR | 2:1 |
| Weight (g) | 350 |
| RoHS | Yes |
| Gain (Max) | 8 |
