Taoglas

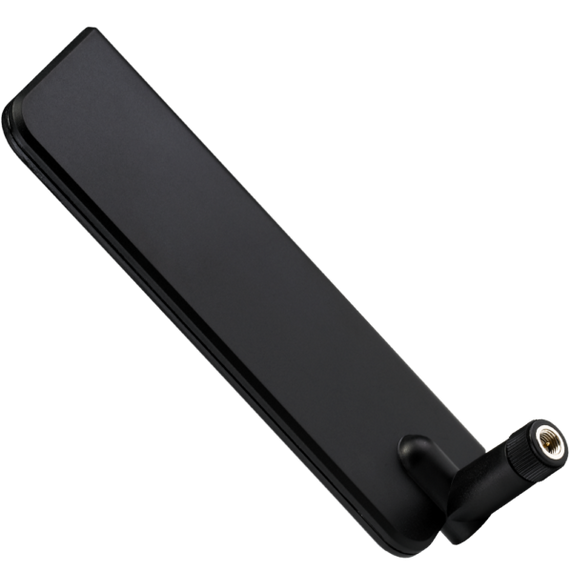

Taoglas Apex 5G/4G Terminal Antenna, SMA (M) RA
Product Code:
TG.30.8112
Condition:
New
Weight:
0.10 KGS
Width:
1.00
(cm)
Height:
14.86
(cm)
Depth:
4.90
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Apex TG.30 is an omnidirectional 5G/4G antenna. This fixed 90 degree, connector mount, dipole antenna is primarily designed for use with 5G/4G modules and devices that require the highest possible efficiency and peak gain in order to deliver best-in-class throughput. Ideal for all major worldwide cellular bands, it is perfect for access points, terminals, and routers. The antenna is ground plane independent with an SMA(M) connector and is backward compatible with 3G/2G cellular applications such as GSM, LTE, UMTS, Wi-Fi®, and even GPS bands for Assisted GPS and/or E911 applications. With very high efficiency on all global cellular bands, it is an ideal solution for any device requiring reliable performance. It is also guaranteed to meet any type of approval or carrier certification requirements from an RF standpoint.
The Apex TG.30 antenna is recommended for NTN (Non-Terrestrial Network) devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America).
The Apex TG.30 has a robust, UV-resistant, IP65 rated waterproof enclosure that has been designed so the TG.30 can be used in challenging environments. This patented antenna is available in both white and black versions, and it is also available with straight and rotatable connectors.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Cellular, NTN/SatCom |
| IP Rating | IP65 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 49 |
| Width (mm) | 10 |
| Height (mm) | 148.6 |
| Connector Body Style | Right Angle |
| Polarity | Linear |
| Frequency Range | 600MHz - 6000MHz |
| Connector Polarity | Normal |
| VSWR | 3 |
| Weight (g) | 48 |
| RoHS | Yes |
| Gain (Max) | 3.5 |
