Taoglas

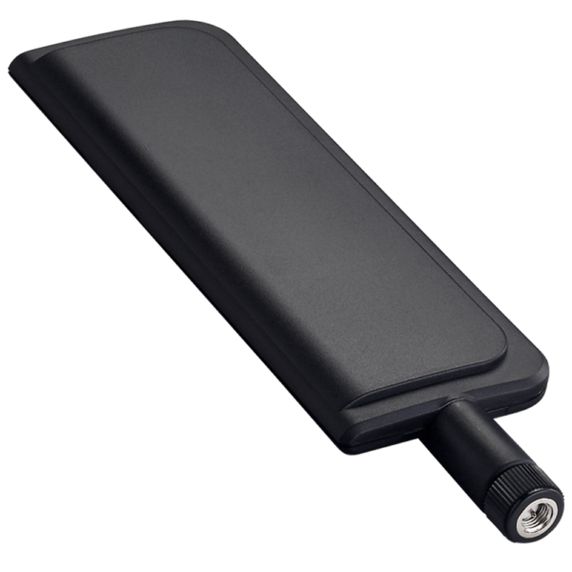

Taoglas Apex 5G/4G Terminal Antenna, SMA (M)
Product Code:
TG.30.8111
Condition:
New
Weight:
0.10 KGS
Width:
1.00
(cm)
Height:
17.10
(cm)
Depth:
4.90
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Apex Black Straight TG.30 Dipole LTE Antenna – is primarily designed for use with 5G/4G modules and devices that require the highest possible efficiency and peak gain to deliver best in class throughput on all major cellular (5G/4G/3G/2G) bands worldwide for access points, terminals and routers.
This antenna is a ground plane independent antenna with an SMA (M) connector. The Apex exhibits high efficiency across the ultra-wideband and is backward compatible with 2G and 3G cellular applications such as GSM, LTE, UMTS, Wi-Fi® and even has GPS included for Assisted GPS and/or E911 applications. With very high efficiency on every cellular band globally it is an ideal solution for any device requiring high, reliable performance. It is also guaranteed to meet any type of approval or carrier certification requirements from an RF standpoint. It is an omnidirectional antenna and the radiation patterns display this and are stable across all bands.
The Apex TG.30 antenna is recommended for NTN (Non-Terrestrial Network) devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America).
It has a quality robust IP67 UV resistant housing (SMA connector is IP65) for use with wireless terminals.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Cellular, NTN/SatCom |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 49 |
| Width (mm) | 10 |
| Height (mm) | 171 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 600MHz - 6000MHz |
| Connector Polarity | Normal |
| VSWR | 3 |
| Weight (g) | 45.5 |
| RoHS | Yes |
| Gain (Max) | 3 |
