Taoglas

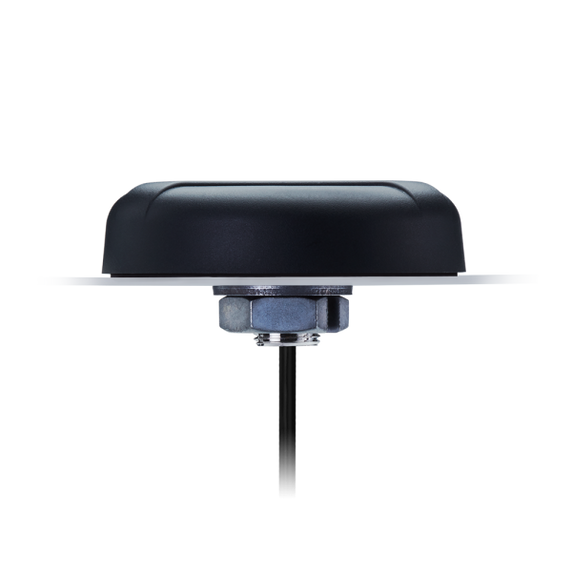

Taoglas All-Band GNSS Active Permanent Mount Antenna
Product Code:
A.120.A.101111
Condition:
New
Weight:
0.29 KGS
Width:
9.40
(cm)
Height:
2.60
(cm)
Depth:
9.40
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Taoglas Bolt A.120 is an active multi-band GNSS antenna has been carefully designed to work well on the full GNSS spectrum and the L-Band for correction services. This allows the user to achieve higher location accuracy, as well as stability of position tracking in urban environments meaning a better overall GNSS system for the user.
The A.120 Bolt has excellent performance across the full bandwidth of the antenna and its design has an even gain across the hemisphere giving almost excellent, broad axial ratio which in turn makes it resilient to multipath rejection and excellent phase centre stability.
The LNA used in the A.120 ensures excellent out of band rejection and provides excellent positioning stability and reliability of GNSS signals. The robust, covert, permanent mount IP67 rated ASA enclosure is just 26mm in height designed for ease of installation. It can be mounted on any surface; however, performance can be affected when mounted on metal surfaces.
Typical Applications Include:
• Autonomous Driving
• Precision Positioning for Robotics
• Precision Agriculture
• Telematics & Asset Tracking
The A.120 is the latest external addition to an ongoing product road map of high precision antennas by Taoglas. For RTK applications when used on the base and/or the rover, the A.120 can achieve genuine cm-level accuracy.
Cable and connectors are customizable.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, GNSS |
| GNSS Type | Active GNSS |
| GNSS Bands | L1/L2/L5/L6/L-Band |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 94 |
| Width (mm) | 94 |
| Height (mm) | 26 |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 1176.45MHz - 1602MHz |
| Connector Polarity | None |
| Cable Length (mm) | 1000 |
| VSWR | 1.5:1 |
| Weight (g) | 283.5 |
| RoHS | Yes |
| Gain (Max) | 30.2 |
5 customers are viewing this product
Details
The Taoglas Bolt A.120 is an active multi-band GNSS antenna has been carefully designed to work well on the full GNSS spectrum and the L-Band for correction services. This allows the user to achieve higher location accuracy, as well as stability of position tracking in urban environments meaning a better overall GNSS system for the user.
The A.120 Bolt has excellent performance across the full bandwidth of the antenna and its design has an even gain across the hemisphere giving almost excellent, broad axial ratio which in turn makes it resilient to multipath rejection and excellent phase centre stability.
The LNA used in the A.120 ensures excellent out of band rejection and provides excellent positioning stability and reliability of GNSS signals. The robust, covert, permanent mount IP67 rated ASA enclosure is just 26mm in height designed for ease of installation. It can be mounted on any surface; however, performance can be affected when mounted on metal surfaces.
Typical Applications Include:
• Autonomous Driving
• Precision Positioning for Robotics
• Precision Agriculture
• Telematics & Asset Tracking
The A.120 is the latest external addition to an ongoing product road map of high precision antennas by Taoglas. For RTK applications when used on the base and/or the rover, the A.120 can achieve genuine cm-level accuracy.
Cable and connectors are customizable.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, GNSS |
| GNSS Type | Active GNSS |
| GNSS Bands | L1/L2/L5/L6/L-Band |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 94 |
| Width (mm) | 94 |
| Height (mm) | 26 |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 1176.45MHz - 1602MHz |
| Connector Polarity | None |
| Cable Length (mm) | 1000 |
| VSWR | 1.5:1 |
| Weight (g) | 283.5 |
| RoHS | Yes |
| Gain (Max) | 30.2 |
