Taoglas

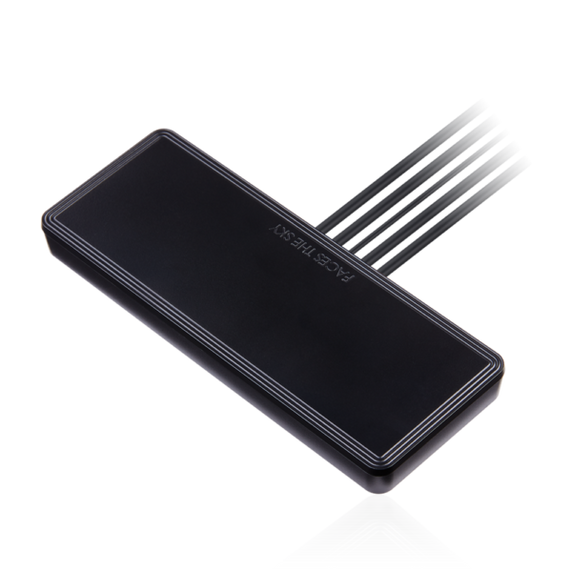

Taoglas Adhesive Mount 5-in-1 Combination GNSS, 2*LTE MIMO & 2*Wi-Fi MIMO Low Profile Antenna
Product Code:
MA285.LBICG.001
Condition:
New
Weight:
0.18 KGS
Width:
5.90
(cm)
Height:
1.30
(cm)
Depth:
15.20
(cm)
$146.38
The Taoglas MA285 is one of the smallest 5-in-1 low profile, adhesive mount, combination antennas on the market. Comprising of GNSS, 2* LTE MIMO and 2* Wi-Fi® MIMO, this unique antenna delivers powerful LTE antenna technology, that includes backward compatibility to work at most worldwide 3G and 2G bands. Coupled with GPS, GLONASS & BeiDou and dual-band 2.4/5.8GHz Wi-Fi® MIMO, it is ideal for next generation, multiple wireless technology systems, such as vehicle telematics and applications that require highly sophisticated antennas for real-time streaming demanding high-speed video uplink and downlink into the cabin of the vehicle. These challenges are resolved by the highly efficient, high gain MIMO antennas, with high isolation, all of which is necessary to achieve the required signal to noise ratio and throughput.
The LTE & Wi-Fi® antennas have an omnidirectional radiation pattern and the robust PC/ABS enclosure is fully IP67 waterproof and design for use in the harshest of environments. The GNSS antenna has been carefully designed to work equally well on both GPS/GALILEO and GLONASS bands, leading to higher location accuracy and stability of tracking in urban environments.
Typical Applications Include:
• Next Generation OEM Automotive Connectivity
• Multimedia, Navigation and Telematics Systems
• V2V, V2X and Fleet Management Applications
• Real-time HD Video Streaming
• Digital Signage and Remote Monitoring
• First Net Responder Routers Cable length and connector types are fully customizable.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 151.8 |
| Width (mm) | 59 |
| Height (mm) | 13 |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 698MHz - 5850MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | 2.1 |
| Weight (g) | 180 |
| RoHS | Yes |
| Gain (Max) | 5.9 |
5 customers are viewing this product
Details
The Taoglas MA285 is one of the smallest 5-in-1 low profile, adhesive mount, combination antennas on the market. Comprising of GNSS, 2* LTE MIMO and 2* Wi-Fi® MIMO, this unique antenna delivers powerful LTE antenna technology, that includes backward compatibility to work at most worldwide 3G and 2G bands. Coupled with GPS, GLONASS & BeiDou and dual-band 2.4/5.8GHz Wi-Fi® MIMO, it is ideal for next generation, multiple wireless technology systems, such as vehicle telematics and applications that require highly sophisticated antennas for real-time streaming demanding high-speed video uplink and downlink into the cabin of the vehicle. These challenges are resolved by the highly efficient, high gain MIMO antennas, with high isolation, all of which is necessary to achieve the required signal to noise ratio and throughput.
The LTE & Wi-Fi® antennas have an omnidirectional radiation pattern and the robust PC/ABS enclosure is fully IP67 waterproof and design for use in the harshest of environments. The GNSS antenna has been carefully designed to work equally well on both GPS/GALILEO and GLONASS bands, leading to higher location accuracy and stability of tracking in urban environments.
Typical Applications Include:
• Next Generation OEM Automotive Connectivity
• Multimedia, Navigation and Telematics Systems
• V2V, V2X and Fleet Management Applications
• Real-time HD Video Streaming
• Digital Signage and Remote Monitoring
• First Net Responder Routers Cable length and connector types are fully customizable.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 151.8 |
| Width (mm) | 59 |
| Height (mm) | 13 |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 698MHz - 5850MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | 2.1 |
| Weight (g) | 180 |
| RoHS | Yes |
| Gain (Max) | 5.9 |
