Taoglas

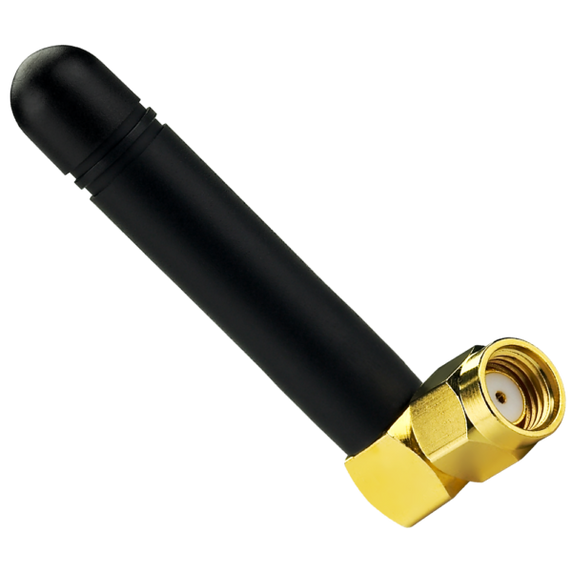

Taoglas 3G/2G Cellular Connector Mount Monopole, RP-SMA(M)RA
Product Code:
TG.22.0152
Condition:
New
Weight:
0.10 KGS
Width:
0.78
(cm)
Height:
4.50
(cm)
Depth:
0.78
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The TG.22.0152 Penta-band GSM-DCS-PCS-UMTS-CDMA-GPRS-EDGE-HSPA 800MHz to 2200MHz monopole helical antenna is a quality robust antenna with high gain in small form factor. The connection is made via fixed right angle RP-SMA(M) connector with a hardened waterproof PU casing, this antenna is the ideal GSM antenna for telematics devices.
The TG.22.0152 antenna is recommended for NTN (Non-Terrestrial Network) devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America).
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Cellular, NTN/SatCom |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 7.8 |
| Width (mm) | 17 |
| Height (mm) | 44.8 |
| Connector Body Style | Right Angle |
| Polarity | Linear |
| Frequency Range | 824MHz - 1990MHz |
| Connector Polarity | Normal |
| VSWR | <3.5 |
| Weight (g) | 6 |
| RoHS | Yes |
| Gain (Max) | 3.7 |
