Taoglas

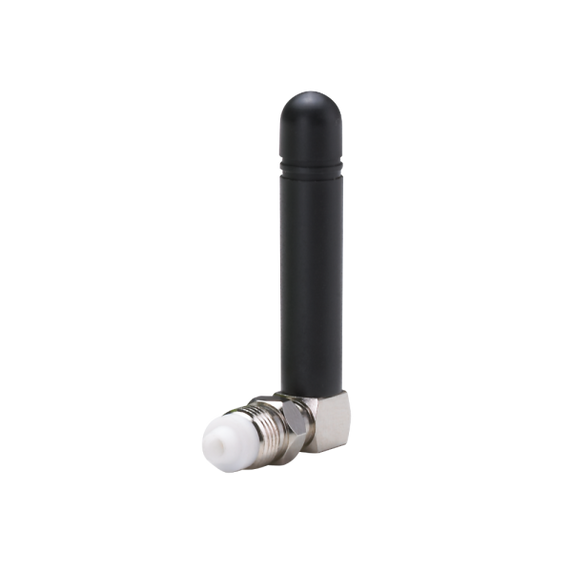

Taoglas 3G/2G Cellular Connector Mount Monopole, FME(F)RA
Product Code:
TG.22.0222
Condition:
New
Weight:
0.10 KGS
Width:
2.50
(cm)
Height:
4.50
(cm)
Depth:
0.78
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The TG.22.0222 824MHz to 2170MHz monopole antenna is a quality robust antenna with high gain in small form factor.
Connection is made via right angle FME(F) connector with a hardened TPEE casing, this antenna is the ideal for remote monitoring devices or telematics applications. The TG.22.0222 antenna has been tuned specifically for optimum efficiency when connected directly to the Sierra Wireless Airlink GL series programmable module.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Cellular, NTN/SatCom |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | FME |
| Length (mm) | 7.8 |
| Width (mm) | 24.7 |
| Height (mm) | 45 |
| Connector Body Style | Right Angle |
| Polarity | Linear |
| Frequency Range | 824MHz - 2170MHz |
| Connector Polarity | Normal |
| VSWR | <3.5 |
| Weight (g) | 50 |
| RoHS | Yes |
| Gain (Max) | 3 |
