Taoglas

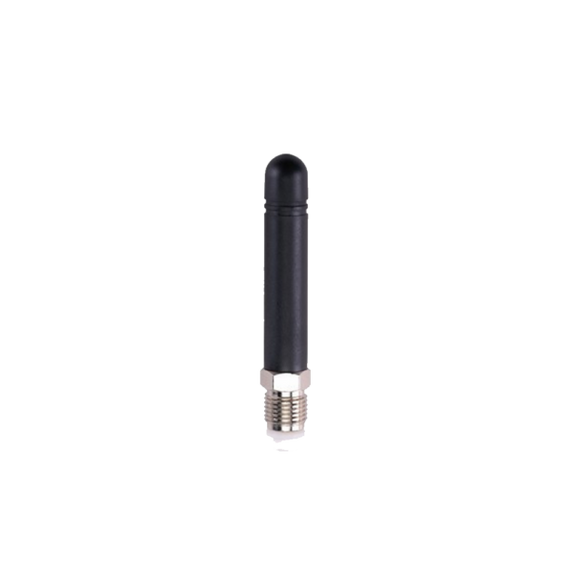

Taoglas 3G/2G Cellular Connector Mount Monopole, FME(F)
Product Code:
TG.22.0221
Condition:
New
Weight:
0.10 KGS
Width:
0.78
(cm)
Height:
5.20
(cm)
Depth:
0.78
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The TG.22 Cellular Monopole Antenna with 2G/3G Penta-band from 824MHz to 2170MHz monopole antenna is a quality robust antenna with high gain in small form factor.
The TG.22 antenna is recommended for NTN (Non-Terrestrial Network) devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America).
Connection is made via straight FME(F) connector with a hardened TPEE casing, this antenna is a good compact 2G/3G antenna for remote monitoring devices or telematics applications. The TG.22.0221 antenna has been tuned specifically for optimum efficiency when connected directly to the Sierra Wireless Airlink GL series programmable module.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Cellular, NTN/SatCom |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | FME |
| Length (mm) | 7.8 |
| Width (mm) | 7.8 |
| Height (mm) | 52 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 824MHz - 1990MHz |
| Connector Polarity | Normal |
| VSWR | <3.5 |
| Weight (g) | 8 |
| RoHS | Yes |
| Gain (Max) | 3 |
5 customers are viewing this product
Details
The TG.22 Cellular Monopole Antenna with 2G/3G Penta-band from 824MHz to 2170MHz monopole antenna is a quality robust antenna with high gain in small form factor.
The TG.22 antenna is recommended for NTN (Non-Terrestrial Network) devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America).
Connection is made via straight FME(F) connector with a hardened TPEE casing, this antenna is a good compact 2G/3G antenna for remote monitoring devices or telematics applications. The TG.22.0221 antenna has been tuned specifically for optimum efficiency when connected directly to the Sierra Wireless Airlink GL series programmable module.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Cellular, NTN/SatCom |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | FME |
| Length (mm) | 7.8 |
| Width (mm) | 7.8 |
| Height (mm) | 52 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 824MHz - 1990MHz |
| Connector Polarity | Normal |
| VSWR | <3.5 |
| Weight (g) | 8 |
| RoHS | Yes |
| Gain (Max) | 3 |
