Taoglas
Taoglas 2dBi 915MHz Terminal Mount Hinged Dipole Antenna
Product Code:
TI.92.2113
Condition:
New
Weight:
0.23 KGS
Width:
1.30
(cm)
Height:
19.80
(cm)
Depth:
13.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

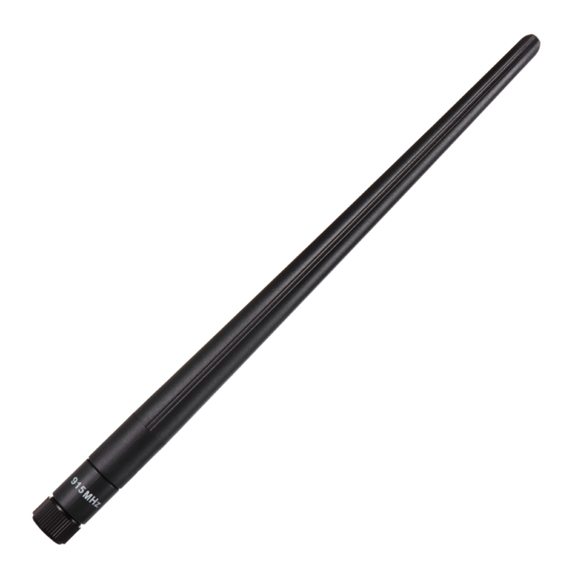

The TI.92.2113 is a high performance 915MHz Terminal mount Dipole antenna, it is 198mm tall and 13mm in diameter and can be mounted straight or right angled due to its hinged SMA(M) connector which comes as standard. This antenna performs very well in free space, making it an ideal solution in areas where there may be no ground plane.
Typical Applications include:
• Smart Metering
• Remote Monitoring
• Industrial IoT
• Connected Enterprise

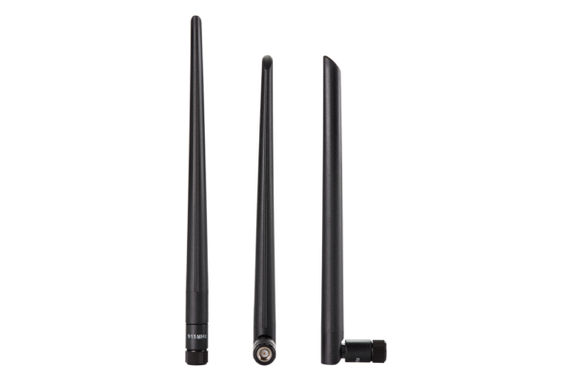

The TI.92 is manufactured using TPEE which makes it very lightweight at just 22.5g. The swivel and hinge mechanism allows the antenna to be orientated in different directions which helps to avoid other antennas or objects.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, ISM/LoRA |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 13 |
| Width (mm) | 13 |
| Height (mm) | 198 |
| Connector Body Style | Hinged |
| Polarity | Vertical |
| Frequency Range | 902MHz - 928MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | n/a |
| VSWR | 02:01 |
| Weight (g) | 22.5 |
| RoHS | Yes |
| Gain (Max) | 2.9 |
