Taoglas

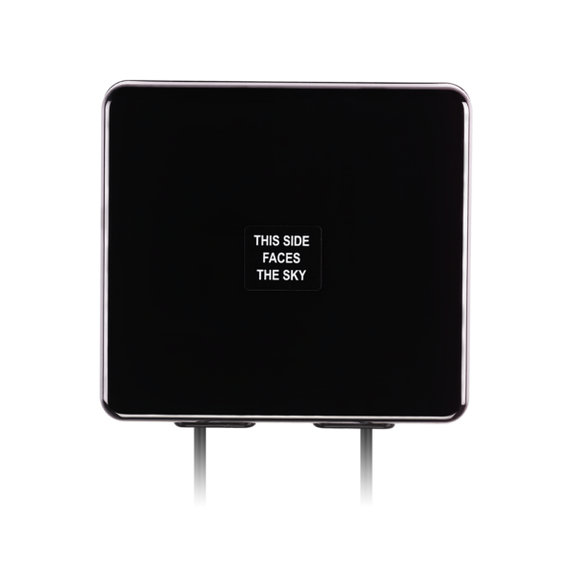

Taoglas 2*LTE MIMO Adhesive Mount Antenna
Product Code:
MA912.A.BI.001
Condition:
New
Weight:
0.67 KGS
Width:
13.40
(cm)
Height:
2.00
(cm)
Depth:
14.60
(cm)
$153.45
The MA912 Guardian is a new generation of combination antenna. It is the first panel antenna worldwide designed for IoT gateway and router devices. It is a low profile 2 in 1 wall and adhesive mount antenna. It is a heavy-duty, fully IP67 waterproof resistant external M2M antenna for use by RF professionals in:
- IoT Gateway and Routers
- HD Video Streaming
- Transportation
- Remote monitoring applications
This antenna delivers powerful MIMO antenna technology for worldwide 4G LTE bands at 698 to 960 MHz/1710 to 2170 MHz/2490 to 2690 MHz/3300 to 3600 MHz, dual-band 2.4/5.8 GHz Wi-Fi®. It enables designers to install only one antenna to cover all of these technologies.
The housing dimension is 146*134*20mm (L*W*H). It is IP67 waterproof and comes with a 3M foam adhesive. The antenna can be mounted internally or externally on a vehicle. The cables are 3 meter, low loss TGC-200 coaxial cable for the LTE antennas. Customized cables and connector versions are also available.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination, Cellular |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 146 |
| Width (mm) | 134 |
| Height (mm) | 20 |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 600MHz - 4000MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | <3 |
| Weight (g) | 672 |
| RoHS | Yes |
| Gain (Max) | 2.9 |
5 customers are viewing this product
Details
The MA912 Guardian is a new generation of combination antenna. It is the first panel antenna worldwide designed for IoT gateway and router devices. It is a low profile 2 in 1 wall and adhesive mount antenna. It is a heavy-duty, fully IP67 waterproof resistant external M2M antenna for use by RF professionals in:
- IoT Gateway and Routers
- HD Video Streaming
- Transportation
- Remote monitoring applications
This antenna delivers powerful MIMO antenna technology for worldwide 4G LTE bands at 698 to 960 MHz/1710 to 2170 MHz/2490 to 2690 MHz/3300 to 3600 MHz, dual-band 2.4/5.8 GHz Wi-Fi®. It enables designers to install only one antenna to cover all of these technologies.
The housing dimension is 146*134*20mm (L*W*H). It is IP67 waterproof and comes with a 3M foam adhesive. The antenna can be mounted internally or externally on a vehicle. The cables are 3 meter, low loss TGC-200 coaxial cable for the LTE antennas. Customized cables and connector versions are also available.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, Combination, Cellular |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 146 |
| Width (mm) | 134 |
| Height (mm) | 20 |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 600MHz - 4000MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | <3 |
| Weight (g) | 672 |
| RoHS | Yes |
| Gain (Max) | 2.9 |
Download
| Download Name | |
| Taoglas 2*LTE MIMO Adhesive Mount Antenna Datasheet | |
