SVP Aerospace

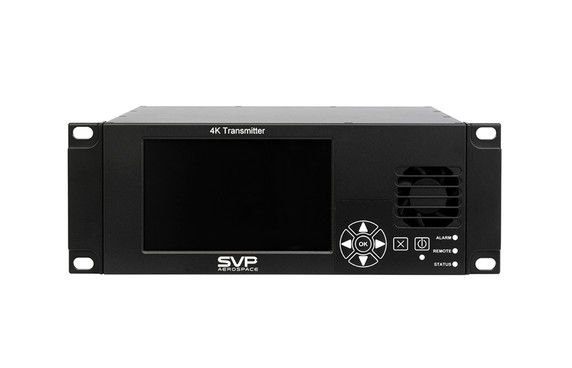

SVP Aerospace UDT_ENC HEVC Video Encoder
Product Code:
UDT_ENC
Condition:
New
Weight:
7.80 KGS
Width:
21.50
(cm)
Height:
27.44
(cm)
Depth:
40.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The UDT-70 is the latest portable encoder developed by SVP Aerospace. Its unique features, exclusively achievable by SVP, make it the most advanced transmitter on the market today.
It supports HEVC, H.264, and MPEG-2 encoding for UHD (Ultra High Definition), HD (High Definition), and SD (Standard Definition) signals with ultra-low latency. HEVC provides the same video quality while reducing file size by up to 50% compared to its predecessor, H.264.
Key enhancements of this new transmitter include the capability to transmit a single UHD signal with HDR at 10-bit 4:2:2 quality or four simultaneous 1080p50/59 HD signals.
Main Features:
- BISS-1 and BISS-E encryption.
- ASI Over IP (optional)
- AES 128 and AES 256 (optional)
- ASI Remux (optional)
- 4 x HD video transmission (optional)
| SPECIFICATIONS | |
| VIDEO | |
| Inputs | 1 × 12G-SDI 2 × 6G-SDI 4 × 3G/HD/SD-SDI (Optional) |
| Formats | 2160p – 23.98/24/25/29.97/30/50/59.94/60 Hz 1080p – 23.98/24/25/29.97/30/50/59.94/60 Hz 1080i – 50/59.94/60 Hz 720p – 23.98/24/25/29.97/30/50/59.94/60 Hz 576i – 50 Hz 480i – 59.94 Hz |
| AUDIO | |
| Quantity | 16 channels (8 pairs) |
| Analogue Input | 2 pair Line / Mic level |
| Formats | Embedded or Analogue |
| Analogue Max. Level | 24 dBu (Balanced) |
| Phantom Power | 48 V Phantom Power |
| TEST SIGNALS | |
| Video | Bars |
| Audio | 16 audio tones |
| DATA CHANNELS | |
| Number of Data Channels | 2 |
| Data channel | User data |
| Data rate | 1,200 to 57,600 bps |
| ASI & IP | |
| Input and Output | ASI Transport Stream Transport Stream over IP I/O (Optional) |
| Remux (Optional) | ASI Remux |
| ENCRYPTION | |
| BISS | BISS-1 and BISS-E |
| AES (Optional) | AES-128 and AES-256 |
| ENCODER | |
| Video compression | HEVC, H.264 and MPEG-2 |
| Profile | 4:2:2 / 4:2:0, 8/10-bit |
| Latency Encoder + Decoder |
UHD 59p = 66 ms UHD 50p = 75 ms FHD 59p = 55 ms FHD 50p = 70 ms FHD 59i = 83 ms FHD 50i = 98 ms |
| Output Bitrate | 1 Mbps – 90 Mbps |
| Audio Encoder | MPEG-1 Layer I, MPEG-1 Layer II and AAC-LC |
| CONTROL & MONITORIZATION | |
| Control interfaces | Front panel and display Web Server interface |
| Monitoring | Encoding parameters Modulation parameters Frequency and output power Alarms and warnings |
| Presets | 7 user defined presets |
| POWER SUPPLY | |
| AC input | 100 to 240 V AC |
| DC input | 24 to 36 V DC |
| Consumption | RF Head: 60 W Control Unit: 40 W |
| MECHANICAL | |
| Control Unit | 2 RU Half-rack size Weight: 3.2 kg |
| RF head | Size: 185.5 × 84 × 339 mm Weight: 4.6 kg |
