SVP Aerospace

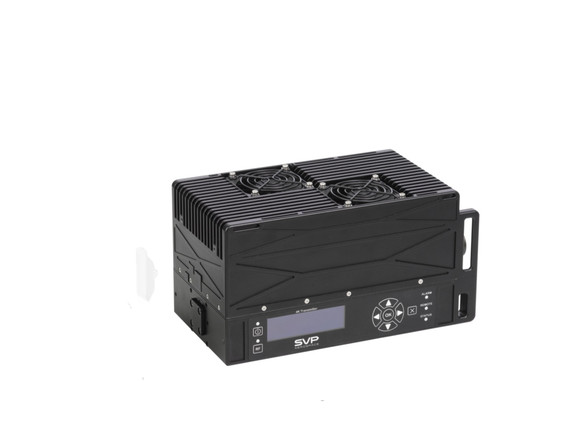

SVP Aerospace UDT-04_ENC HEVC Airborne Video Encoder
Product Code:
UDT-04_ENC
Condition:
New
Weight:
3.30 KGS
Width:
12.30
(cm)
Height:
12.40
(cm)
Depth:
22.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The UDT-04 is the new high power Airborne encoder developed by SVP Aerospace. Its characteristics, achievable only by SVP, make this encoder the most advanced in the market today.
It features HEVC, H.264 and Mpeg-2 encoding for 4K, HD and SD signals with ultra-low latency. HEVC allows the same video quality, reducing file sizes by up to 50% compared to its predecessor, the H.264.
Among the improvements of this new transmitter is the ability to transmit one 4K UHD signal with HDR at 10-bit 4:2:2 quality or 4 simultaneous 1080p50/59HD signals.
Main Features
- Transmission of 4 simultaneous videos up to 1080p50 (optional)
- Remux (optional)
- AES-128 and AES-256 encryption (optional)
- KLV metadata embedded on SDI (optional)
- Remotely controllable via ARINC 429 (optional)
- Clamping compatible with ARINC 404 (optional)
- Power supply range: 9-36 VDC
| SPECIFICATIONS | |
| VIDEO | |
| Inputs | 1 × 12G-SDI 4 × 3G/HD/SD-SDI (Optional) |
| Formats | 2160p – 23.98/24/25/29.97/30/50/59.94/60 Hz 1080p – 23.98/24/25/29.97/30/50/59.94/60 Hz 1080i – 50/59.94/60 Hz 720p – 23.98/24/25/29.97/30/50/59.94/60 Hz 576i – 50 Hz 480i – 59.94 Hz |
| AUDIO | |
| Quantity | 16 channels (8 pairs) |
| Analogue Input | 2 pair Line / Mic level |
| Formats | Embedded or Analogue |
| Analogue Max. Level | 24 dBu (Balanced) |
| Phantom Power | 48 V |
| TEST SIGNALS | |
| Video | Bars |
| Audio | 16 audio tones |
| DATA CHANNELS | |
| Number of Data Channels | 2 |
| Data channel | User data |
| Data Channel rate | 1,200 to 230,400 bps |
| GPS Channel | Internal GPS data |
| GPS Data Rate | 4,800 bps |
| ASI | |
| Input and Output | ASI Transport Stream |
| Extra Feature | Remux (optional) |
| TS Over IP | Output (optional) |
| ENCRYPTION | |
| BISS | BISS-1 and BISS-E |
| AES (Optional) | AES-128 and AES-256 (optional) |
| ENCODER | |
| Video compression | HEVC, H.264 and MPEG-2 |
| Profile | 4:2:2 / 4:2:0, 8/10-bit |
| Output Bitrate | 1 Mbps – 90 Mbps |
| Latency Encoder + Decoder |
UHD 59p = 66 ms UHD 50p = 75 ms FHD 59p = 55 ms FHD 50p = 70 ms FHD 59i = 83 ms FHD 50i = 98 ms |
| CONTROL & MONITORIZATION | |
| Control interfaces | Front panel and display ARINC 429 (optional) Web browser RTC-03 |
| Monitoring | Encoding, modulation, frequency and output power, alarms, warnings and logbook |
| Presets | 7 user defined presets |
| POWER SUPPLY | |
| DC input | 9 to 36 V |
| Power Consumption | 130 W |
| MECHANICAL | |
| Size (W×H×D) | 123.5 × 124.22 × 224.57 mm |
| Weight | 3.3 kg |
| ENVIRONMENTAL | |
| Temperature range | -20 to 50 ºC |
