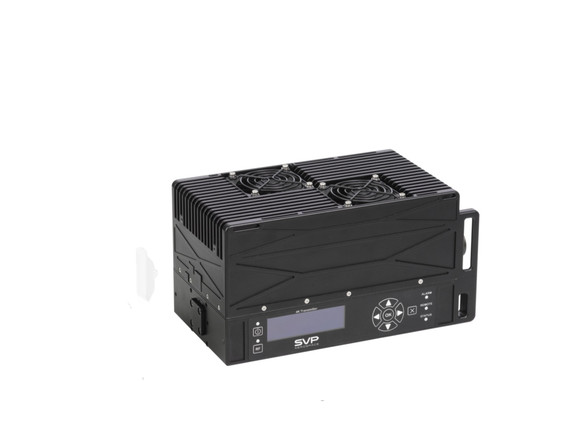

SVP Aerospace UDT-04 HEVC Airborne Transmitter
Product Code:
UDT-04
Condition:
New
Weight:
3.30 KGS
Width:
12.40
(cm)
Height:
12.40
(cm)
Depth:
22.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The UDT-04 is the new high power Airborne transmitter developed by SVP Aerospace. Its characteristics, achievable only by SVP, make this transmitter the most advanced in the market today.
It features HEVC, H.264 and Mpeg-2 encoding for 4K (UHD), HD and SD signals with ultra-low latency. HEVC allows the same video quality, reducing file sizes by up to 50% compared to its predecessor, the H.264.
Among the improvements of this new transmitter is the ability to transmit one 4K UHD signal with HDR at 10-bit 4:2:2 quality or 4 simultaneous 1080p50/59HD signals.
The transmission is generally carried out using DVB-T2 modulation, since it is a reliable, secure and private network, it is the most used by our users. It also allows us to make high-capacity links in any scenario, reaching distances of more than 150km of coverage.
*Optional output streaming is available in UDP, RTP, and SRT formats. With its two Ethernet connections, it is suitable for connecting to cellular or satellite datalinks. The UDT-04 transmitter allows simultaneous transmission via microwave LOS in DVB-T2 and with NLOS datalinks.
Main Features
- DVB-T2 modulation
- Transmission of true 4K UHD signals in 12G
- Transmission of 4 simultaneous videos up to 1080p50 (optional)
- Remux (optional)
- AES-128 and AES-256 encryption (optional)
- KLV metadata embedded on SDI (optional)
- Remotely controllable via ARINC 429 (optional)
- Power supply range: 9-36 VDC
- SRT Streaming for External Data-Links (optional)
| SPECIFICATIONS | |
| RF Stage | |
| Frequency range | 1,250 to 1,600 MHz 1,700 to 2,200 MHz 1,900 to 2,500 MHz 2,300 to 2,700 MHz 3,300 to 3,600 MHz 4,400 to 5,000 MHz 5,000 to 5,300 MHz 6,400 to 7,000 MHz |
| Max. Output power | 10 W (1,250 to 1,600 MHz) 10 W (1,700 to 2,200 MHz) 15 W (1,900 to 2,500 MHz) 15 W (2,300 to 2,700 MHz) 10 W (3,300 to 3,600 MHz) 10 W (4,400 to 5,000 MHz) 5 W (5,000 to 5,300 MHz) 10 W (6,400 to 7,000 MHz) |
| Protection capabilities | Short circuit Reverse power Overvoltage |
| Modulation | |
| DVB-T2 | COFDM 1K, 2K, 4K QPSK, 16QAM, 64QAM, 256QAM Constellation rotation LDPC FEC: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 IG: 1/8, 1/16, 1/32 Bandwidth: 1.7, 5, 6, 7, 8 MHz Max. bit rate: 46.4 Mbps |
| DVB-T | COFDM 2K mode QPSK, 16QAM, 64QAM FEC: 1/2, 2/3, 3/4, 5/6, 7/8 IG: 1/8, 1/16, 1/32 Bandwidth: 5, 6, 7, 8 MHz Max. bitrate: 31.67 Mbps |
| Video | |
| Inputs | 1 x 12G-SDI 4 x 3G, HD, SD-SDI (Optional) |
| Formats | 2160p – 23.98/24/25/29.97/30/50/59.94/60 Hz 1080p – 23.98/24/25/29.97/30/50/59.94/60 Hz 1080i – 50/59.94/60 Hz 720p – 23.98/24/25/29.97/30/50/59.94/60 Hz 576i – 50 Hz 480i – 59.94 Hz |
| Audio | |
| Quantity | 16 channels (8 pairs) |
| Analogue Input | 2 pair Line / Mic level |
| Formats | Embedded or Analogue |
| Analogue Max. Level | 24 dBu (Balanced) |
| Phantom Power | 48 V |
| Test Signals | |
| Video | Bars |
| Audio | 16 Audio tones |
| Data Channels | |
| Number of data channels | 2 |
| Data channel | User data |
| Data channel rate | 1,200 to 230,400 bps |
| GPS channel | Internal GPS data |
| GPS data rate | 4,800 bps |
| ASI | |
| Input and Output | ASI Transport Stream |
| Extra feature | Remux (optional) |
| TS over IP | Output (optional) |
| Encryption | |
| BISS | BISS-1 and BISS-E |
| AES (Optional) | AES-128 and AES-256 |
| Encoder | |
| Video compression | HEVC, H.264 and MPEG2 |
| Profile | 4:2:2/4:2:0, 8/10-bit |
| Output Bitrate | 1 Mbps – 90 Mbps |
| Latency Encoder+Decoder |
UHD 59p = 66ms UHD 50p = 75ms FHD 59p = 55ms FHD 50p = 70ms FHD 59i = 83ms FHD 50i = 98ms |
| Control & Monitorization | |
| Control interfaces | Front panel and display ARINC 429 (optional) Web browser RTC-03 |
| Monitoring | Encoding, modulation, frequency and output power, alarms, warnings and logbook |
| Presets | 7 user defined presets |
| Power Supply | |
| DC input | 9 to 36 V |
| PoE | 24V @ 30 Watts |
| Power consumption | 130 W |
| Mechanical | |
| Size | 123.5 × 124.22 × 224.57 mm |
| Weight | 3.3 kg |
| Environmental | |
| Temperature range | -20 to 50 ºC |
