SVP Aerospace

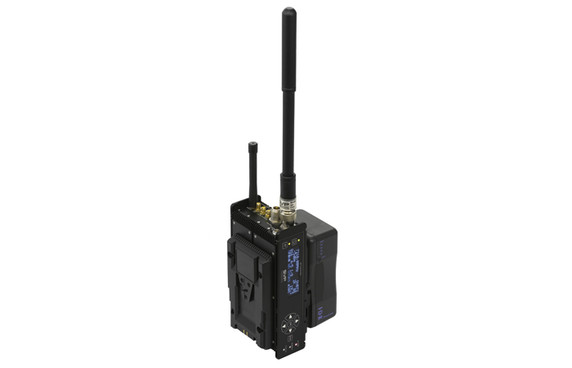

SVP Aerospace UDT-02_ENC HEVC Small Video Encoder
Product Code:
UDT-02_ENC
Condition:
New
Weight:
1.20 KGS
Width:
19.60
(cm)
Height:
10.20
(cm)
Depth:
48.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The UDT-02_ENC is the new encoder developed by SVP Aerospace. Its characteristics, achievable only by SVP, make this encoder the most advanced in the market today.
It features HEVC, H.264 and Mpeg-2 encoding for 4K (UHD), High Definition (HD) and Standard Definition (SD) signals with ultra-low latency. HEVC allows the same video quality, reducing file sizes by up to 50% compared to its predecessor, the H.264.
Among the improvements of this new transmitter is the ability to transmit one 4K UHD signal with HDR at 10-bit 4:2:2 quality or 4 simultaneous 1080p50/59HD signals.
The UDT-02_ENC offers streaming in UDP, RTP, and SRT formats via the Ethernet output. Streaming and the web server are connected to the same Ethernet connector, with an internal switch.
It includes PoE to power BLOS-04 devices.
Main Features
- Low Latency (60ms glass to glass) for live applications
- Transmission of true 4K UHD signals in 12G
- Transmission of 4 simultaneous videos up to 1080p50/59HD (Optional)
- Streaming with SRT
- Direct connection to Cellular Data Link (BLOS-04) and Satellite (BLOS-10)
- Internal GPS
| SPECIFICATIONS | |
| VIDEO | |
| Inputs | 1 × 12G-SDI 4 × 3G/HD/SD-SDI (Optional) |
| Formats | 2160p – 23.98/24/25/29.97/30/50/59.94/60 Hz 1080p – 23.98/24/25/29.97/30/50/59.94/60 Hz 1080i – 50/59.94/60 Hz 720p – 23.98/24/25/29.97/30/50/59.94/60 Hz 576i – 50 Hz480i – 59.94 Hz 480i – 59.94 Hz |
| AUDIO | |
| Quantity | 16 channels (8 pairs) |
| Analogue Input | 2 pair Line / Mic level |
| Formats | Embedded or Analogue |
| Analogue Max. Level | 24 dBu (Balanced) |
| Phantom Power | 48 V Phantom Power |
| TEST SIGNALS | |
| Video | Bars |
| Audio | 16 audio tones |
| DATA CHANNELS | |
| Data channel | User data / GPS data |
| Data rate | 1,200 to 57,600 bps |
| ASI | |
| Input and Output | ASI Transport Stream |
| Remux (Optional) | ASI Remux |
| ENCRYPTION | |
| BISS | BISS-1 and BISS-E |
| AES (Optional) | AES-128 and AES-256 |
| ENCODER | |
| Video compression | HEVC, H.264 and MPEG-2 |
| Profile | 4:2:2 / 4:2:0, 8/10-bit |
| Latency Encoder + Decoder |
UHD 59p = 66 ms UHD 50p = 75 ms FHD 59p = 55 ms FHD 50p = 70 ms FHD 59i = 83 ms FHD 50i = 98 ms |
| Output Bitrate | 1 Mbps – 90 Mbps |
| Audio Encoder | MPEG-1 Layer I, MPEG-1 Layer II and AAC-LC |
| CONTROL & MONITORIZATION | |
| Control interfaces | Front panel and display Web browser RTC-03 |
| Monitoring | Encoding, modulation, frequency and output power, alarms and warnings |
| Presets | 7 user defined presets |
| POWER SUPPLY | |
| DC input | 10 to 36 V V-mount interface powered by batteries (Optional) |
| Consumption | 35 W |
| MECHANICAL | |
| Size | 196 × 102 × 48.5 mm |
| Weight | 1.2 kg (with V-mount battery interface) |
| ENVIRONMENTAL | |
| Temperature range | -20 to 45 ºC |
