SVP Aerospace

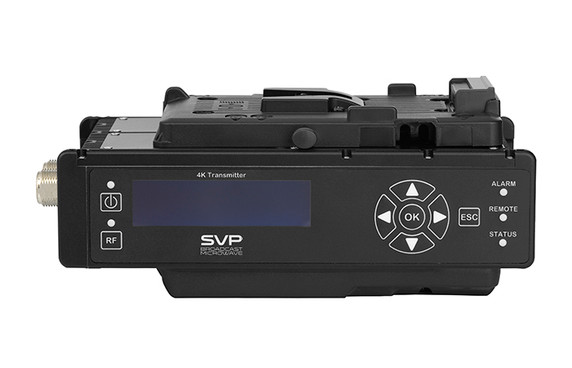

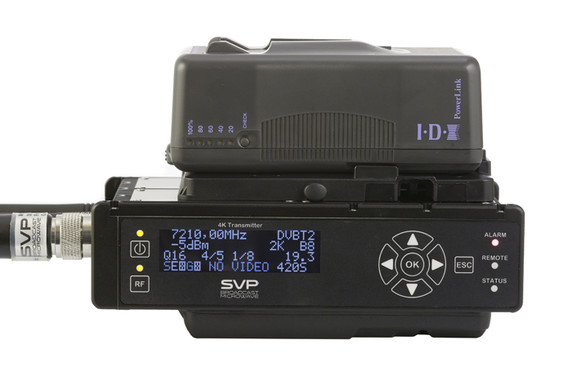

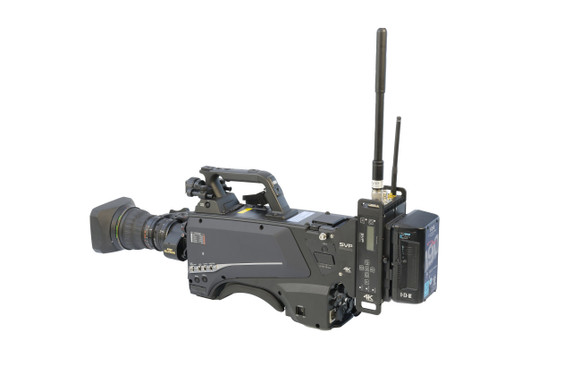

SVP Aerospace UDT-02 HEVC Wireless Camera Transmitter
Product Code:
UDT-02
Condition:
New
Weight:
1.20 KGS
Width:
19.60
(cm)
Height:
10.20
(cm)
Depth:
48.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
UDT-02 HEVC WIRELESS CAMERA TRANSMITTER
12G Encoding & DVB-T2 Modulation with Ultra-low latency
The UDT-02 is the new multiband and multifunction transmitter developed by SVP Aerospace. Its characteristics, achievable only by SVP, make this transmitter the most advanced in the market today.
It features HEVC, H.264 and Mpeg-2 encoding for 12G, high definition (HD) and standard definition (SD) signals with ultra-low latency. HEVC allows the same video quality, reducing file sizes by up to 50% compared to its predecessor, the H.264.
Among the improvements of this new transmitter is the ability to transmit one 4K UHD signal with HDR at 10-bit 4:2:2 quality or 4 simultaneous 1080p50/59HD signals.
Main Features
- Ultra Wide RF: 1 GHz to 3 GHz and 3 GHz to 8 GHz (Optional)
- DVB-T2 modulation
- Low Latency (60ms glass to glass) for live applications
- Transmission of true 4K UHD signals in 12G
- Transmission of 4 simultaneous videos up to 1080p50/59HD (Optional)
- Bidirectional camera control and Tally.
| SPECIFICATIONS | |
| RF Stage DVB-T2 & DVB-T | |
| Frequency range | 1 GHz to 3 GHz 3 GHz to 8 GHz (Optional) |
| Max. Output power | 100 mW (1 GHz to 3 GHz) 50 mW (3 GHz to 8 GHz) |
| Modulation | |
| DVB-T2 | COFDM 1K, 2K, 4K mode QPSK, 16QAM, 64QAM, 256QAM Constellation rotation LDPC FEC: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 IG: 1/8, 1/16, 1/32 Bandwidth: 1.7, 5, 6, 7, 8 MHz Max bitrate: 46.4 Mbps |
| DVB-T | COFDM 2K mode QPSK, 16QAM, 64QAM FEC: 1/2, 2/3, 3/4, 5/6, 7/8 IG: 1/8, 1/16, 1/32 Bandwidth: 5, 6, 7, 8 MHz Max bitrate: 31.67 Mbps |
| Video | |
| Inputs | 1 x 12G-SDI 4 x 3G, HD, SD-SDI (Optional) |
| Formats | 2160p – 23.98/24/25/29.97/30/50/59.94 /60 Hz 1080p – 23.98/24/25/29.97/30/50/59.94/60 Hz 1080i – 50/59.94/60 Hz 720p – 23.98/24/25/29.97/30/50/59.94/60 Hz 576i – 50 Hz 480i – 59.94 Hz |
| Audio | |
| Quantity | 16 channels (8 pairs) |
| Analogue Input | 2 pair Line / Mic level |
| Formats | Embedded or Analogue |
| Analogue Max. Level | 24dBu (Balanced) |
| Phantom Power | 48V Phantom Power |
| Test Signals | |
| Video | Bars |
| Audio | 16 Audio tones |
| Data Channels | |
| Data channel | User data / GPS data |
| Data rate | 1,200 to 57,600 bps |
| ASI | |
| Input and Output | ASI Transport Stream |
| Remux (Optional) | ASI Remux |
| Encryption | |
| BISS | BISS-1 and BISS-E |
| AES (Optional) | AES-128 and AES-256 |
| Encoder | |
| Video compression | HEVC, H.264 and MPEG2 |
| Profile | 4:2:2/4:2:0, 8/10-bit |
| Latency Encoder+Decoder |
UHD 59p = 66ms UHD 50p = 75ms FHD 59p = 55ms FHD 50p = 70ms FHD 59i = 83ms FHD 50i = 98ms |
| Output Bitrate | 1 Mbps – 90 Mbps |
| Audio Encoder | MPEG-1 Layer1, MPEG-1 Layer2 and AAC-LC |
| Control & Monitorization | |
| Control interfaces | Front panel and display Web browser RTC-03 |
| Monitoring | Encoding, modulation, frequency and output power, alarms and warnings |
| Presets | 7 user defined presets |
| Power Supply | |
| DC input | 10 to 36V V moun-t Interface powered by batteries (Optional) |
| Consumption | 35 W |
| Mechanical | |
| Size | 196 x 102 x 48,5 mm |
| Weight | 1.2 kg (With V-mount battery interface) |
| Environmental | |
| Temperature range | -20 to 45ºC |
| Bidirectional Camera Control | |
| Frequency range | 403 to 473 MHz |
| Output power | 100mW |
| Compatibility | Panasonic and Sony |
| Tally | Tally RED, Tally GREEN and On Camera |
5 customers are viewing this product
Details
UDT-02 HEVC WIRELESS CAMERA TRANSMITTER
12G Encoding & DVB-T2 Modulation with Ultra-low latency
The UDT-02 is the new multiband and multifunction transmitter developed by SVP Aerospace. Its characteristics, achievable only by SVP, make this transmitter the most advanced in the market today.
It features HEVC, H.264 and Mpeg-2 encoding for 12G, high definition (HD) and standard definition (SD) signals with ultra-low latency. HEVC allows the same video quality, reducing file sizes by up to 50% compared to its predecessor, the H.264.
Among the improvements of this new transmitter is the ability to transmit one 4K UHD signal with HDR at 10-bit 4:2:2 quality or 4 simultaneous 1080p50/59HD signals.
Main Features
- Ultra Wide RF: 1 GHz to 3 GHz and 3 GHz to 8 GHz (Optional)
- DVB-T2 modulation
- Low Latency (60ms glass to glass) for live applications
- Transmission of true 4K UHD signals in 12G
- Transmission of 4 simultaneous videos up to 1080p50/59HD (Optional)
- Bidirectional camera control and Tally.
| SPECIFICATIONS | |
| RF Stage DVB-T2 & DVB-T | |
| Frequency range | 1 GHz to 3 GHz 3 GHz to 8 GHz (Optional) |
| Max. Output power | 100 mW (1 GHz to 3 GHz) 50 mW (3 GHz to 8 GHz) |
| Modulation | |
| DVB-T2 | COFDM 1K, 2K, 4K mode QPSK, 16QAM, 64QAM, 256QAM Constellation rotation LDPC FEC: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 IG: 1/8, 1/16, 1/32 Bandwidth: 1.7, 5, 6, 7, 8 MHz Max bitrate: 46.4 Mbps |
| DVB-T | COFDM 2K mode QPSK, 16QAM, 64QAM FEC: 1/2, 2/3, 3/4, 5/6, 7/8 IG: 1/8, 1/16, 1/32 Bandwidth: 5, 6, 7, 8 MHz Max bitrate: 31.67 Mbps |
| Video | |
| Inputs | 1 x 12G-SDI 4 x 3G, HD, SD-SDI (Optional) |
| Formats | 2160p – 23.98/24/25/29.97/30/50/59.94 /60 Hz 1080p – 23.98/24/25/29.97/30/50/59.94/60 Hz 1080i – 50/59.94/60 Hz 720p – 23.98/24/25/29.97/30/50/59.94/60 Hz 576i – 50 Hz 480i – 59.94 Hz |
| Audio | |
| Quantity | 16 channels (8 pairs) |
| Analogue Input | 2 pair Line / Mic level |
| Formats | Embedded or Analogue |
| Analogue Max. Level | 24dBu (Balanced) |
| Phantom Power | 48V Phantom Power |
| Test Signals | |
| Video | Bars |
| Audio | 16 Audio tones |
| Data Channels | |
| Data channel | User data / GPS data |
| Data rate | 1,200 to 57,600 bps |
| ASI | |
| Input and Output | ASI Transport Stream |
| Remux (Optional) | ASI Remux |
| Encryption | |
| BISS | BISS-1 and BISS-E |
| AES (Optional) | AES-128 and AES-256 |
| Encoder | |
| Video compression | HEVC, H.264 and MPEG2 |
| Profile | 4:2:2/4:2:0, 8/10-bit |
| Latency Encoder+Decoder |
UHD 59p = 66ms UHD 50p = 75ms FHD 59p = 55ms FHD 50p = 70ms FHD 59i = 83ms FHD 50i = 98ms |
| Output Bitrate | 1 Mbps – 90 Mbps |
| Audio Encoder | MPEG-1 Layer1, MPEG-1 Layer2 and AAC-LC |
| Control & Monitorization | |
| Control interfaces | Front panel and display Web browser RTC-03 |
| Monitoring | Encoding, modulation, frequency and output power, alarms and warnings |
| Presets | 7 user defined presets |
| Power Supply | |
| DC input | 10 to 36V V moun-t Interface powered by batteries (Optional) |
| Consumption | 35 W |
| Mechanical | |
| Size | 196 x 102 x 48,5 mm |
| Weight | 1.2 kg (With V-mount battery interface) |
| Environmental | |
| Temperature range | -20 to 45ºC |
| Bidirectional Camera Control | |
| Frequency range | 403 to 473 MHz |
| Output power | 100mW |
| Compatibility | Panasonic and Sony |
| Tally | Tally RED, Tally GREEN and On Camera |
