SVP Aerospace

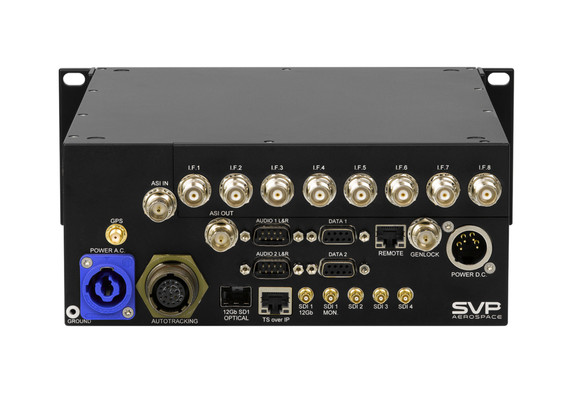

SVP Aerospace UDR_DEC HEVC Video Decoder
Product Code:
UDR_DEC
Condition:
New
Weight:
3.20 KGS
Width:
21.50
(cm)
Height:
12.75
(cm)
Depth:
9.46
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
SVP’s new UDR-104 and UDR-108 receivers perform DVB-T2, DVB-T and ISDB-T demodulations. DVB-T2 modulation outperforms DVB-T modulation and offers a much higher data rate, and therefore, a higher quality signal or much more robust signal than DVB-T, enabling longer and more complex links.
This receiver has eight antenna inputs in DVB-T2, DVB-T and ISDB-T demodulations, using spatial diversity based on MRC technique (Maximum Ratio Combining). Optionally, you can split 8 antennas into 4+4 system, receiving 2 different signals and obtaning them multiplexed in the ASI output.
It features HEVC, H.264 and Mpeg-2 encoding for 12G, high definition (HD) and standard definition (SD) signals with ultra-low latency. HEVC allows the same video quality, reducing file sizes by up to 50% compared to its predecessor, the H.264.
Among the improvements of this new receiver is the ability to receive one 4K UHD signal with HDR at 10-bit 4:2:2 quality or 4 simultaneous 1080p50/59HD signals.
ASI input and Transport Stream over IP input enable its use as a standalone decoder. Besides, the ASI output and the Transport Stream over IP output enable the user to handle the receiver as a demodulator.
| SPECIFICATIONS | |
| RF STAGE DVB-T2 AND DVB-T | |
| IF Frequency range | 150 to 980 MHz |
| Tuning Step | 10 kHz |
| Input level range | DVB-T2 @ 2 GHz: -20 to -102 dBm DVB-T2 @ 5 GHz: -20 to -101 dBm |
| Diversity | 4 inputs UDR-104 8 inputs UDR-108 4+4 inputs (Dual diversity option) |
| Diversity Technique | MRC (Maximum Ratio Combining) |
| IF Input connector | TNC 50 Ohms (Default) BNC 75 Ohms (Optional) |
| DEMODULATION | |
| DVB-T2 | COFDM 1k, 2k, 4k QPSK, 16QAM, 64QAM, 256QAM Constellation rotation LDPC FEC: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 IG: 1/8, 1/16, 1/32 Bandwidth: 1.7, 5, 6, 7, 8 MHz Max bitrate: 46.4 Mbps |
| DVB-T | COFDM 2k QPSK, 16QAM, 64QAM FEC: 1/2, 2/3, 3/4, 5/6, 7/8 IG: 1/8, 1/16, 1/32 Bandwidth: 5, 6, 7, 8 MHz Max bitrate: 31.67 Mbps |
| ISDB-T | COFDM 2K, 4K and 8K mode QPSK, 16QAM, 64QAM FEC: 1/2, 2/3, 3/4, 5/6, 7/8 IG: 1/4, 1/8, 1/16, 1/32 Bandwidth: 6, 7, 8 MHz Max bitrate: 31 Mbps |
| DECODER | |
| Modes | HEVC, H.264 and Mpeg-2 |
| Audio decoder | MPEG-1 Layer 1, MPEG-1 Layer 2 and AAC-LC |
| Latency Encoder + Decoder | UHD 59p = 66ms UHD 50p = 75ms FHD 59p = 55ms FHD 50p = 70ms FHD 59i = 83ms FHD 50i = 98ms |
| VIDEO | |
| Outputs | 12G-SDI 4 x 3G-SDI, HD-SDI and SD-SDI (optional) 1 x SFP 12G Optical interface |
| Formats | 2160p – 23.98/24/25/29.97/30/50/59.94 /60 Hz 1080p – 23.98/24/25/29.97/30/50/59.94/60 Hz 1080i – 50/59.94/60 Hz 720p – 23.98/24/25/29.97/30/50/59.94/60 Hz 576i – 50 Hz 480i – 59.94 Hz |
| Profile | 4.2.2/4.2.0, 8/10-bit |
| Genlock | Tri Level Composite |
| AUDIO | |
| Channel Quantity | SDI Embedded 16 channels (8 pairs) Analogue 2 pair Line level |
| Outputs | SDI Embedded Analogue |
| DATA CHANNELS | |
| Data channel | User data / GPS |
| Data rate | 1,200 to 57,600 bps |
| ASI & IP | |
| Outputs and Inputs | ASI Transport Stream Transport Stream over IP (Optional) |
| DECRYPTION | |
| BISS | BISS-1 and BISS-E |
| AES | AES-128 and AES-256 |
| CONTROL & MONITORIZATION | |
| Control interfaces | Front panel and display Web server |
| Monitoring | Decoder parameters Demodulation parameters Frequency and input level MER, BER, C/N Alarms, warnings, logbook and clock |
| Video | TFT Video screen 5″ |
| AUTOTRACKING (OPTIONAL) | |
| Antenna control | Local GPS, Remote GPS ,Compass and Inclinometer Control of QPT positioner |
| POWER SUPPLY | |
| AC input | 100 to 240 V |
| DC input | 9 to 36 V |
| MECHANICAL | |
| Size | 2 RU Half rack size |
| Weight | 3.2 kg |
