SVP Aerospace
SVP Aerospace TILT-30A 2 Axis Inclinometer
Product Code:
TILT-30A
Condition:
New
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

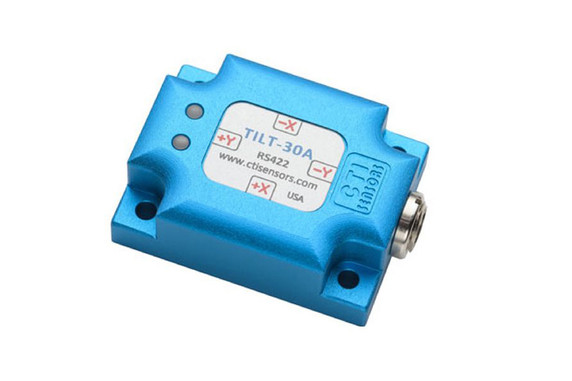

TILT-30A Inclinometers are high performance, high resolution dual axis digital inclinometers that use the latest miniature MEMS sensor technology in a robust aluminum housing. This inclinometer is used together with the QPT-90 positioners. The inclinometer provides Pitch and Roll information to the receiver’s tracking system, providing an accurate tracking of the target.
This inclinometer is provided together with the necessary bracket for installation on the QPT-90 positioner.
| SPECIFICATIONS | |
| TILT-30A INCLINOMETER | |
| Power Source | 4.85 – 36 VDC |
| Measuring Range | ±90° (Horizontal installation) ±180° (Vertical Installation) |
| Resolution | ±0.01° | 0.25 mg (@ data rate ≤ 5) |
| Zero offset error | < ±0.1° (@20°C) |
| Baud Rate | 2.4 kbps – 921.6 kbps, default: 115.2 kbps |
| Output data rate | 1, 2, 5, 10, 20, 25, 40, 50, and 100 Hz Selectable |
| Interface | RS-422 |
5 customers are viewing this product
Details
TILT-30A Inclinometers are high performance, high resolution dual axis digital inclinometers that use the latest miniature MEMS sensor technology in a robust aluminum housing. This inclinometer is used together with the QPT-90 positioners. The inclinometer provides Pitch and Roll information to the receiver’s tracking system, providing an accurate tracking of the target.
This inclinometer is provided together with the necessary bracket for installation on the QPT-90 positioner.
| SPECIFICATIONS | |
| TILT-30A INCLINOMETER | |
| Power Source | 4.85 – 36 VDC |
| Measuring Range | ±90° (Horizontal installation) ±180° (Vertical Installation) |
| Resolution | ±0.01° | 0.25 mg (@ data rate ≤ 5) |
| Zero offset error | < ±0.1° (@20°C) |
| Baud Rate | 2.4 kbps – 921.6 kbps, default: 115.2 kbps |
| Output data rate | 1, 2, 5, 10, 20, 25, 40, 50, and 100 Hz Selectable |
| Interface | RS-422 |
