SVP Aerospace

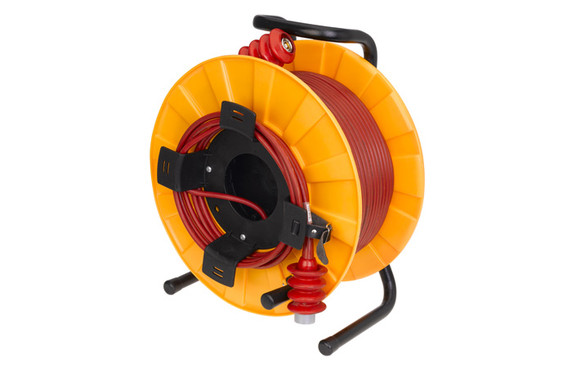

SVP Aerospace TCS-100 Triax Cable Spool
Product Code:
TCS-100
Condition:
New
Weight:
20.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Triaxial cable is used for the power supply of simultaneous transmissions, to feed the up/down converters and for transmission of signals from the modulator to the up converter or in reception from the down converter to the demodulator.
| SPECIFICATIONS | |
| Attenuation (100 m) | @ 1 MHz: 0.6 dB @ 10 MHz: 2.2 dB @ 20 MHz: 3.2 dB @ 40 MHz: 4.6 dB @ 50 MHz: 5.1 dB @ 60 MHz: 5.6 dB @ 100 MHz: 7.5 dB @ 300 MHz: 13.8 dB |
| Return Losses (dB) | @ 1 – 100 MHz: 26 dB @ 100 – 300 MHz: 23 dB |
| Characteristic impedance | 75 Ω ± 3 % |
| Screening factor | >75 dB |
| Maximum operating voltage | 300 V |
| Cable length | 100 m |
5 customers are viewing this product
Details
Triaxial cable is used for the power supply of simultaneous transmissions, to feed the up/down converters and for transmission of signals from the modulator to the up converter or in reception from the down converter to the demodulator.
| SPECIFICATIONS | |
| Attenuation (100 m) | @ 1 MHz: 0.6 dB @ 10 MHz: 2.2 dB @ 20 MHz: 3.2 dB @ 40 MHz: 4.6 dB @ 50 MHz: 5.1 dB @ 60 MHz: 5.6 dB @ 100 MHz: 7.5 dB @ 300 MHz: 13.8 dB |
| Return Losses (dB) | @ 1 – 100 MHz: 26 dB @ 100 – 300 MHz: 23 dB |
| Characteristic impedance | 75 Ω ± 3 % |
| Screening factor | >75 dB |
| Maximum operating voltage | 300 V |
| Cable length | 100 m |
