SVP Aerospace

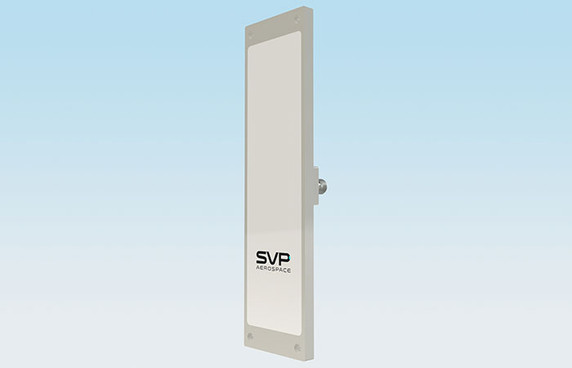

SVP Aerospace Sector Antennas 2GHz 13dBi
Product Code:
AS | ASC
Condition:
New
Weight:
1.00 KGS
Width:
34.00
(cm)
Height:
8.80
(cm)
Depth:
1.40
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The AS-213 (linear polarization) and the ASC-213 (circular polarization) antennas are sector antennas which are especially useful in the receiver site to offer wide reception coverage.
They have a narrow vertical beamwidth and wide coverage in azimuth. This avoids having to steer the receiver antenna towards the transmitter, as long as the transmitter is inside the coverage area.
| SPECIFICATIONS | |
| AS-213 AND ASC-213 ANTENNAS | |
| Frequency band | AS-213: 2.1 to 2.5 GHz ASC-213: 2.2 to 2.6 GHz |
| Bandwidth | 400 MHz |
| Gain | AS-213: 13 dBi ASC-213: 13 dBiC |
| Polarization | AS-213: Linear ASC-213: Circular |
| Radiation pattern | 90ºH, 20ºV |
| VSWR | Typ: <1.5 |
| Connector | N female |
| Size | 340 × 88 × 14 mm |
5 customers are viewing this product
Details
The AS-213 (linear polarization) and the ASC-213 (circular polarization) antennas are sector antennas which are especially useful in the receiver site to offer wide reception coverage.
They have a narrow vertical beamwidth and wide coverage in azimuth. This avoids having to steer the receiver antenna towards the transmitter, as long as the transmitter is inside the coverage area.
| SPECIFICATIONS | |
| AS-213 AND ASC-213 ANTENNAS | |
| Frequency band | AS-213: 2.1 to 2.5 GHz ASC-213: 2.2 to 2.6 GHz |
| Bandwidth | 400 MHz |
| Gain | AS-213: 13 dBi ASC-213: 13 dBiC |
| Polarization | AS-213: Linear ASC-213: Circular |
| Radiation pattern | 90ºH, 20ºV |
| VSWR | Typ: <1.5 |
| Connector | N female |
| Size | 340 × 88 × 14 mm |
